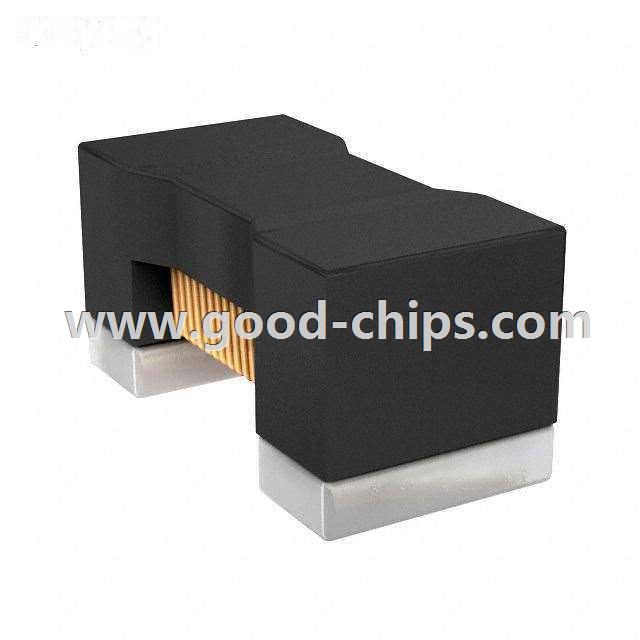

 Wirewound.jpg)
| Manufacturer Part Number: | LQW18CNR56J00D |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 560nH Unshielded Wirewound Inductor 450mA 480 mOhm Max 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQW18CNR56J00D Datasheet |
| Internal Part Number | 898-LQW18CNR56J00D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Chip RF Inductors | |
| Online Catalog | LQW Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQW18C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 560nH | |
| Tolerance | ±5% | |
| Current Rating | 450mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 480 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 540MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 10MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
| Height - Seated (Max) | 0.037" (0.95mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQW18CNR56J00D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQW18CNR56J00D is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQW18CNR56J00D is new and unused, you can buy LQW18CNR56J00D Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQW18CNR56J00D.
