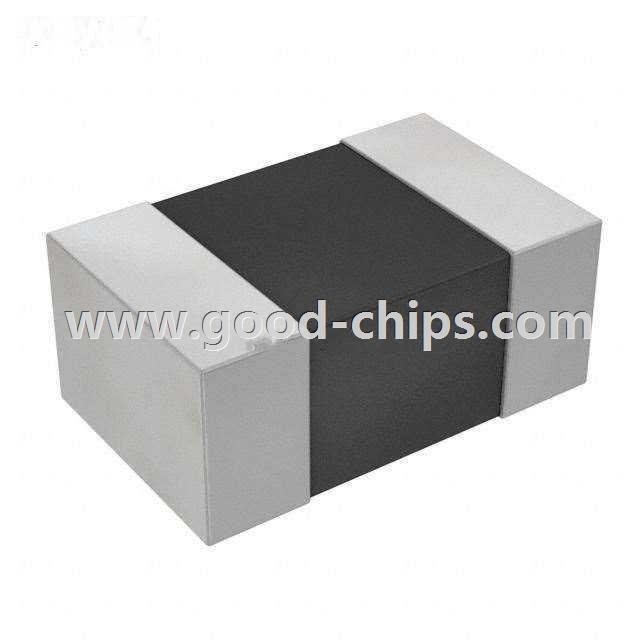

.jpg)
| Manufacturer Part Number: | LQM21PN2R2MGHL |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2µH Shielded Multilayer Inductor 1.3A 156 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQM21PN2R2MGHL Datasheet |
| Internal Part Number | 898-LQM21PN2R2MGHL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LQM Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQM21PN_GH | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Ferrite | |
| Inductance | 2.2µH | |
| Tolerance | ±20% | |
| Current Rating | 1.3A | |
| Current - Saturation | 450mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 156 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 40MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.01mm x 1.25mm) | |
| Height - Seated (Max) | 0.039" (1.00mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQM21PN2R2MGHL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQM21PN2R2MGHL is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQM21PN2R2MGHL is new and unused, you can buy LQM21PN2R2MGHL Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQM21PN2R2MGHL.
