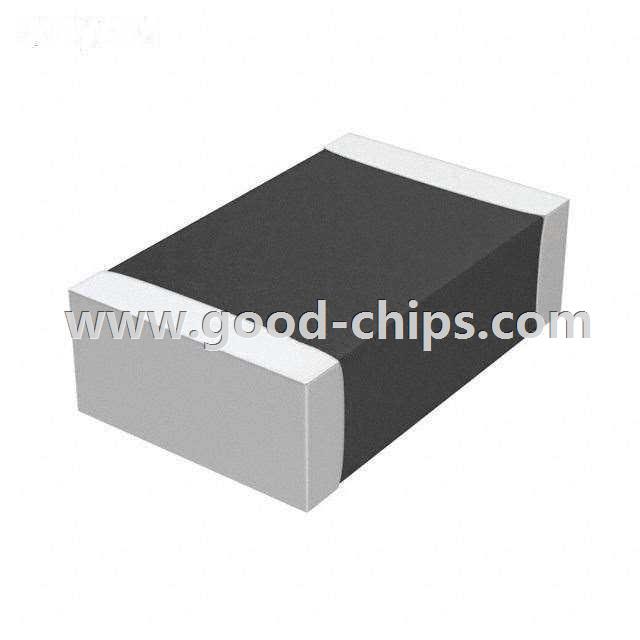

| Manufacturer Part Number: | LQM21FN4R7M80L |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4.7µH Shielded Multilayer Inductor 120mA 234 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQM21FN4R7M80L Datasheet |
| Internal Part Number | 898-LQM21FN4R7M80L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LQM Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQM21F_80 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Ferrite | |
| Inductance | 4.7µH | |
| Tolerance | ±20% | |
| Current Rating | 120mA | |
| Current - Saturation | 120mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 234 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 25MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.057" (1.45mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQM21FN4R7M80L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQM21FN4R7M80L is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQM21FN4R7M80L is new and unused, you can buy LQM21FN4R7M80L Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQM21FN4R7M80L.
