Manufacturer Part Number: | LQH32DN6R8M53L |
---|---|
Manufacturer: | Murata Electronics North America |
Product Category: | Fixed Inductors |
Available Quantity: | 12271 Pieces |
Unit Price: | Quote by Email |
Description: | 6.8µH Unshielded Wirewound Inductor 540mA 325 mOhm Max 1210 (3225 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LQH32DN6R8M53L Datasheet |
Internal Part Number | 898-LQH32DN6R8M53L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | LQH Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Murata Electronics North America | |

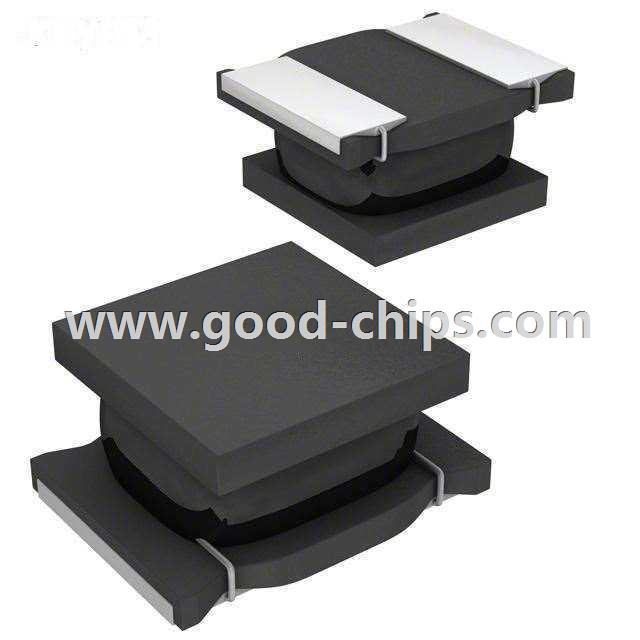

Series | LQH32DN_53 | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 6.8µH | |
Tolerance | ±20% | |
Current Rating | 540mA | |
Current - Saturation | 540mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 325 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | 32MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1210 (3225 Metric) | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height - Seated (Max) | 0.067" (1.70mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LQH32DN6R8M53L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LQH32DN6R8M53L is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQH32DN6R8M53L is new and unused, you can buy LQH32DN6R8M53L Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQH32DN6R8M53L.
