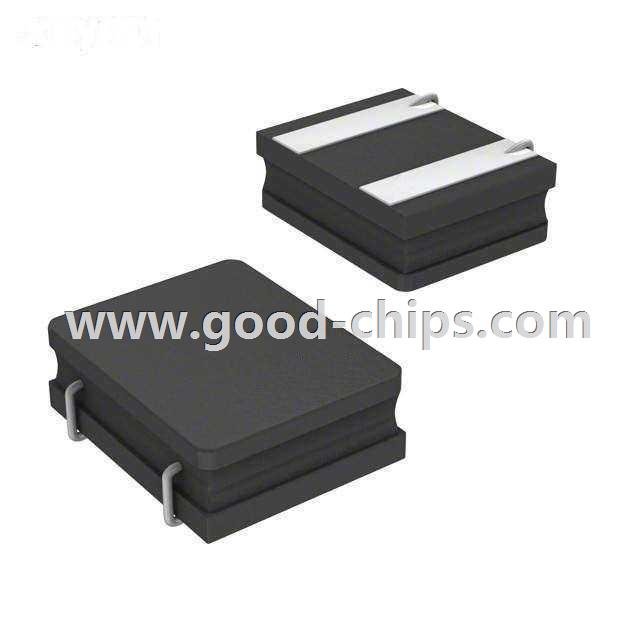

| Manufacturer Part Number: | LQH2HPN220MJRL |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22µH Shielded Wirewound Inductor 320mA 1 Ohm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQH2HPN220MJRL Datasheet |
| Internal Part Number | 898-LQH2HPN220MJRL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LQH Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQH2HPN_JR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 22µH | |
| Tolerance | ±20% | |
| Current Rating | 320mA | |
| Current - Saturation | 530mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 1 Ohm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | 20MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQH2HPN220MJRL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQH2HPN220MJRL is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQH2HPN220MJRL is new and unused, you can buy LQH2HPN220MJRL Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQH2HPN220MJRL.
