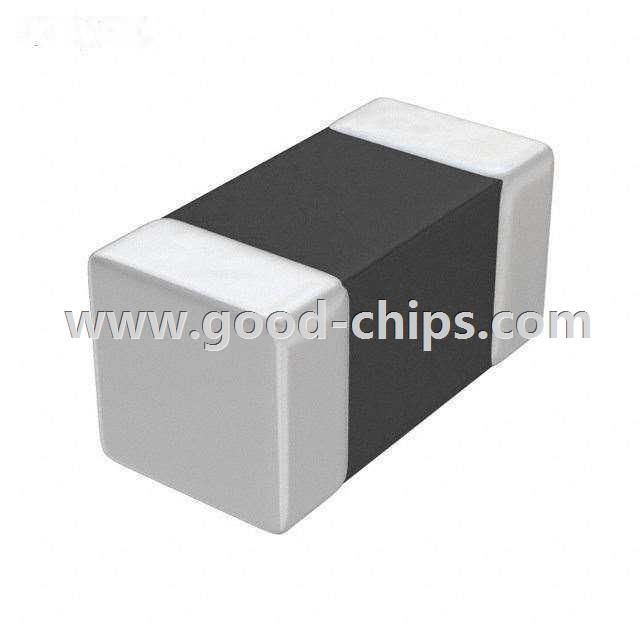

| Manufacturer Part Number: | LQG15HN12NJ02D |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | Fixed Inductors |
| Available Quantity: | 59010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12nH Unshielded Multilayer Inductor 300mA 410 mOhm Max 0402 (1005 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LQG15HN12NJ02D Datasheet |
| Internal Part Number | 898-LQG15HN12NJ02D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Inductor Products | |
| Online Catalog | LQG15Hx Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Murata Electronics North America | |
| Series | LQG15HS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | - | |
| Inductance | 12nH | |
| Tolerance | ±5% | |
| Current Rating | 300mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 410 mOhm Max | |
| Q @ Freq | 8 @ 100MHz | |
| Frequency - Self Resonant | 2.8GHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0402 (1005 Metric) | |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
| Height - Seated (Max) | 0.022" (0.55mm) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LQG15HN12NJ02D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LQG15HN12NJ02D is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of LQG15HN12NJ02D is new and unused, you can buy LQG15HN12NJ02D Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQG15HN12NJ02D.
