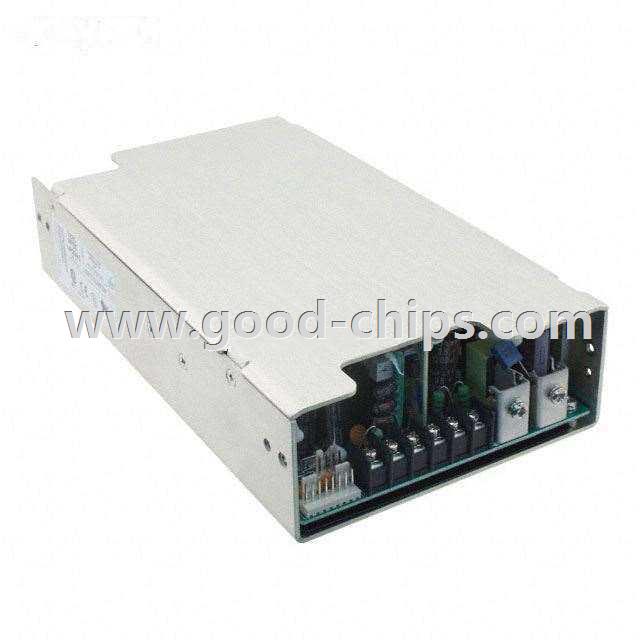

| Manufacturer Part Number: | LPQ253-C |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9030 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CNVRTR 5V +/-15V 25V 250W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LPQ253-C Datasheet |
| Internal Part Number | 898-LPQ253-C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Declaration of Conformity | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | LPQ250 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | LPQ250 | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 4 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | 15V | |
| Voltage - Output 3 | -15V | |
| Voltage - Output 4 | 25V | |
| Current - Output (Max) | 35A, 10A, 6A, 6A | |
| Power (Watts) | 250W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 75% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 10.32" L x 5.00" W x 2.00" H (262.0mm x 127.0mm x 50.8mm) | |
| Minimum Load Required | Yes | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 250W | |
| Standard Package | 32 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LPQ253-C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LPQ253-C is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LPQ253-C is new and unused, you can buy LPQ253-C Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LPQ253-C.
