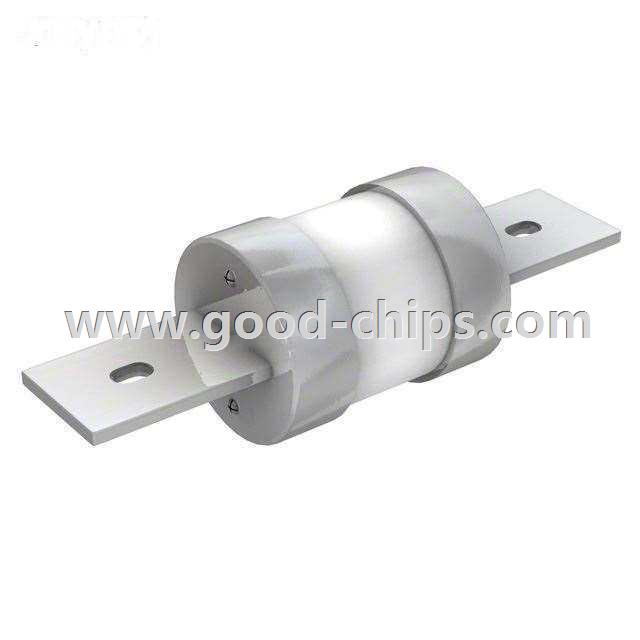

| Manufacturer Part Number: | LPJ-500SP |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Electrical, Specialty Fuses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE CRTRDGE 500A 600VAC/300VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LPJ-500SP Datasheet |
| Internal Part Number | 898-LPJ-500SP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Circuit Protection | |
| Family | Electrical, Specialty Fuses | |
| Manufacturer | Eaton | |
| Series | LOW-PEAK™ LPJ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Fuse Type | Cartridge | |
| Current Rating | 500A | |
| Voltage Rating - AC | 600V | |
| Voltage Rating - DC | 300V | |
| Response Time | Slow | |
| Applications | Electrical, Industrial | |
| Features | - | |
| Class | J | |
| Approvals | CE, CSA, UL | |
| Operating Temperature | - | |
| Breaking Capacity @ Rated Voltage | 300kA AC, 100kA DC | |
| Mounting Type | Bolt Mount | |
| Package / Case | Cylindrical, Blade Terminal (Bolt) | |
| Size / Dimension | 2.500" Dia x 3.750" L (63.50mm x 95.25mm) | |
| Melting I²t | - | |
| DC Cold Resistance | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LPJ-500SP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LPJ-500SP is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of LPJ-500SP is new and unused, you can buy LPJ-500SP Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LPJ-500SP.
