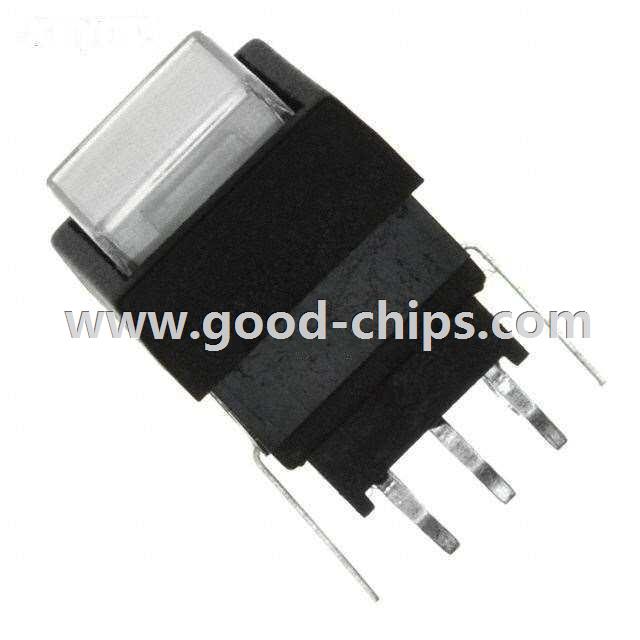

| Manufacturer Part Number: | LP4EE1PBATG |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9363 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch DPDT Standard, Illuminated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP4EE1PBATG Datasheet |
| Internal Part Number | 898-LP4EE1PBATG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| RoHS Information | LP-4 Series RoHS Cert of Compliance | |
| Featured Product | LP4 Series Switches | |
| 3D Model | LP4xx1PBATx.stp | |
| Online Catalog | LP4 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | E-Switch | |
| Series | LP4 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 100mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | Clear | |
| Illumination Type, Color | LED, Green | |
| Illumination Voltage (Nominal) | 2.3 VDC | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -20°C ~ 70°C | |
| Mechanical Life | 50,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP4EE1PBATG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP4EE1PBATG is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of LP4EE1PBATG is new and unused, you can buy LP4EE1PBATG E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP4EE1PBATG.
