| Manufacturer Part Number: | LP3986TLX-2528/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 2 Output 2.5V, 2.8V 150mA 8-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP3986TLX-2528/NOPB Datasheet |
| Internal Part Number | 898-LP3986TLX-2528/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 2.5V, 2.8V | |
| Current - Output | 150mA | |
| Voltage - Dropout (Typical) | 0.06V @ 150mA | |
| Number of Regulators | 2 | |
| Voltage - Input | 2.7 V ~ 6 V | |
| Current - Limit (Min) | 300mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

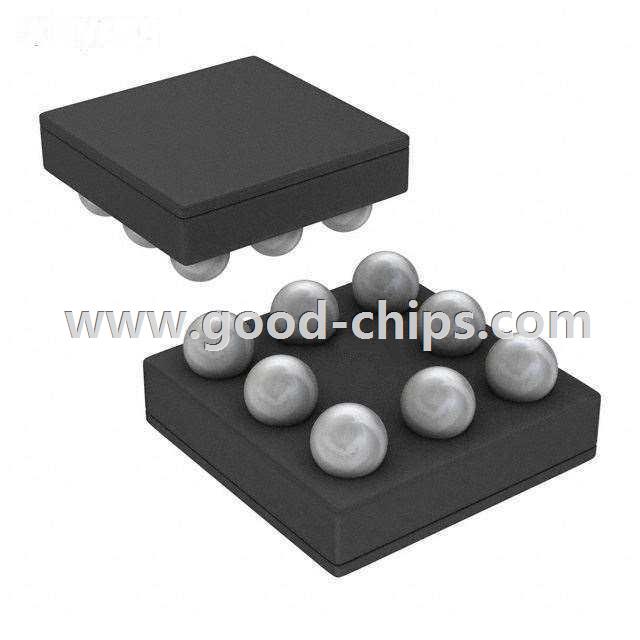

| Package / Case | 8-WFBGA, DSBGA | |
| Supplier Device Package | 8-DSBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP3986TLX-2528/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP3986TLX-2528/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LP3986TLX-2528/NOPB is new and unused, you can buy LP3986TLX-2528/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP3986TLX-2528/NOPB.
