| Manufacturer Part Number: | LP3936SLX |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 9 Output DC DC Regulator Step-Up (Boost) PWM Dimming 25mA, 120mA (Flash) 32-TCSP (5.5x4.5) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP3936SLX Datasheet |
| Internal Part Number | 898-LP3936SLX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting Driver Solutions | |
| Design Resources | Lighting Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 9 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 6V | |
| Voltage - Output | 5.3V | |
| Current - Output / Channel | 25mA, 120mA (Flash) | |
| Frequency | 1MHz | |
| Dimming | PWM | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-WFQN, CSP | |

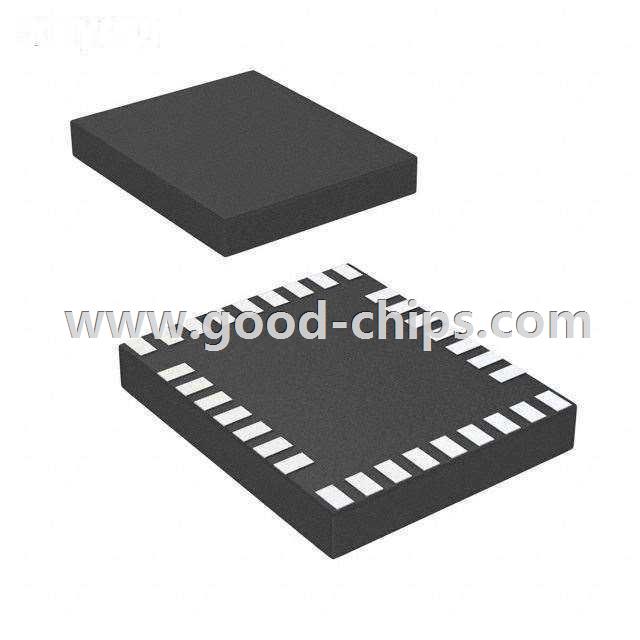

| Supplier Device Package | 32-TCSP (5.5x4.5) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP3936SLX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP3936SLX is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LP3936SLX is new and unused, you can buy LP3936SLX Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP3936SLX.
