| Manufacturer Part Number: | LP3907TLX-JSXS/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - Linear + Switching |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear And Switching Voltage Regulator IC 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 2.1MHz 25-WFBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP3907TLX-JSXS/NOPB Datasheet |
| Internal Part Number | 898-LP3907TLX-JSXS/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Process BCB Elimnation 12/Feb/2014 Wafer Process Revision A 14/Jul/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear + Switching | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | |
| Function | Any Function | |
| Number of Outputs | 4 | |
| Frequency - Switching | 2.1MHz | |
| Voltage/Current - Output 1 | 1.2V, 1A | |
| Voltage/Current - Output 2 | 2.8V, 600mA | |
| Voltage/Current - Output 3 | 3.3V, 300mA | |
| w/LED Driver | No | |
| w/Supervisor | No | |
| w/Sequencer | Yes | |
| Voltage - Supply | 2.8 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

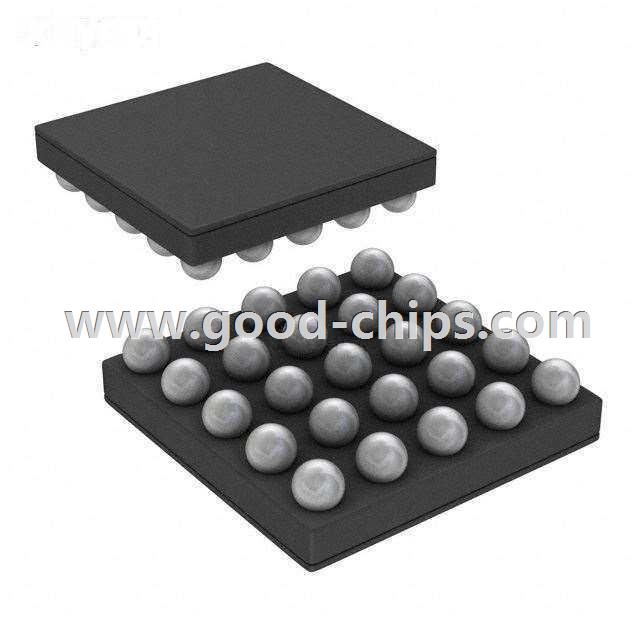

| Package / Case | 25-WFBGA | |
| Supplier Device Package | 25-uSMD | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP3907TLX-JSXS/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP3907TLX-JSXS/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LP3907TLX-JSXS/NOPB is new and unused, you can buy LP3907TLX-JSXS/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP3907TLX-JSXS/NOPB.
