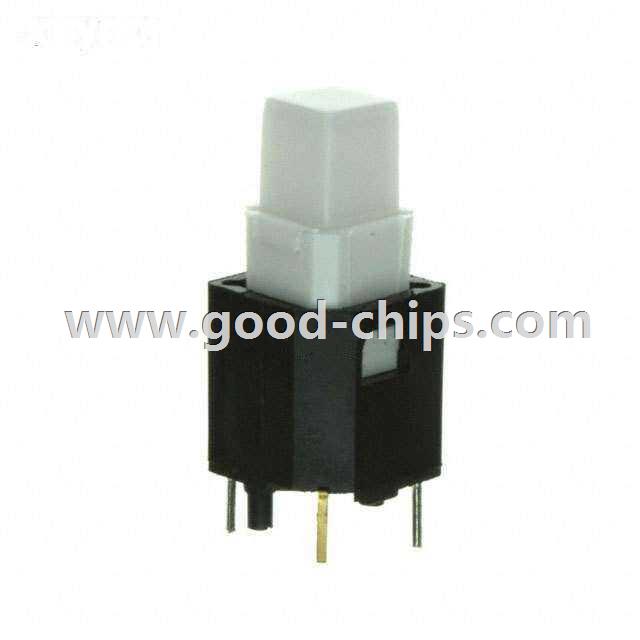

| Manufacturer Part Number: | LP2S1WHTRED-N |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Standard, Illuminated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP2S1WHTRED-N Datasheet |
| Internal Part Number | 898-LP2S1WHTRED-N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| RoHS Information | LP-2 Series RoHS Cert of Compliance | |
| Featured Product | LP2 Illuminated Pushbutton Switches | |
| 3D Model | LP2S1WHTyyy-N.stp | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | E-Switch | |
| Series | LP2 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 1mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 1.5 VDC | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -20°C ~ 70°C | |
| Mechanical Life | 300,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP2S1WHTRED-N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP2S1WHTRED-N is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of LP2S1WHTRED-N is new and unused, you can buy LP2S1WHTRED-N E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP2S1WHTRED-N.
