Manufacturer Part Number: | LP1W-L2-Z |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | Panel Indicators, Pilot Lights |
Available Quantity: | 9170 Pieces |
Unit Price: | Quote by Email |

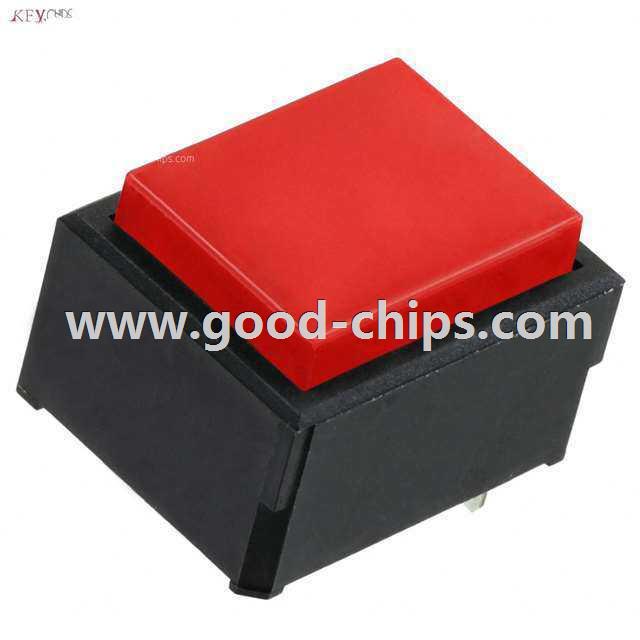

Description: | LED Panel Indicator Red Clear 2V 30mA Rectangle with Flat Top, 15.60mm x 12.00mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LP1W-L2-Z Datasheet |
Internal Part Number | 898-LP1W-L2-Z | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | LP Series | |
Category | Optoelectronics | |
Family | Panel Indicators, Pilot Lights | |
Manufacturer | Copal Electronics Inc. | |
Series | - | |
Part Status | Active | |
Type | LED | |
Lamp Color | Red | |
Lens Color | Red | |
Lens Transparency | Clear | |
Ratings | Vf (Typ), If (Max) | |
Voltage | 2V | |
Current | 30mA | |
Panel Cutout Shape | Rectangular | |
Panel Cutout Dimensions | - | |
Lens Style/Size | Rectangle with Flat Top, 15.60mm x 12.00mm | |
Millicandela Rating | - | |
Wavelength - Peak | - | |
Viewing Angle | - | |
Termination Style | - | |
Ingress Protection | - | |
Features | - | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LP1W-L2-Z | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LP1W-L2-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of LP1W-L2-Z is new and unused, you can buy LP1W-L2-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP1W-L2-Z.
