| Manufacturer Part Number: | LP1030DK1-G |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2P-CH 300V SOT23-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP1030DK1-G Datasheet |
| Internal Part Number | 898-LP1030DK1-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 07/Aug/2014 | |
| PCN Design/Specification | Site Chg 13/Jan/2016 | |
| PCN Assembly/Origin | Fab Site Addition 14/Aug/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 P-Channel (Dual) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 300V | |
| Current - Continuous Drain (Id) @ 25°C | - | |
| Rds On (Max) @ Id, Vgs | 180 Ohm @ 20mA, 7V | |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 10.8pF @ 25V | |
| Power - Max | - | |
| Operating Temperature | -25°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

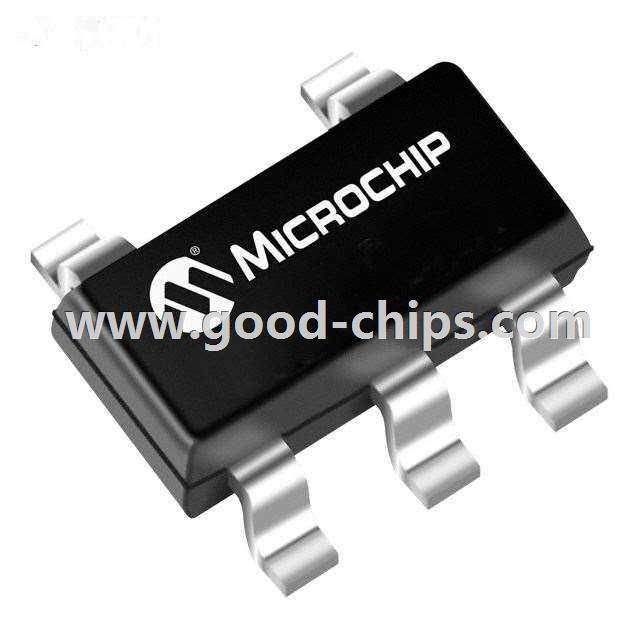

| Package / Case | SC-74A, SOT-753 | |
| Supplier Device Package | SOT-23-5 | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP1030DK1-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP1030DK1-G is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of LP1030DK1-G is new and unused, you can buy LP1030DK1-G Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP1030DK1-G.
