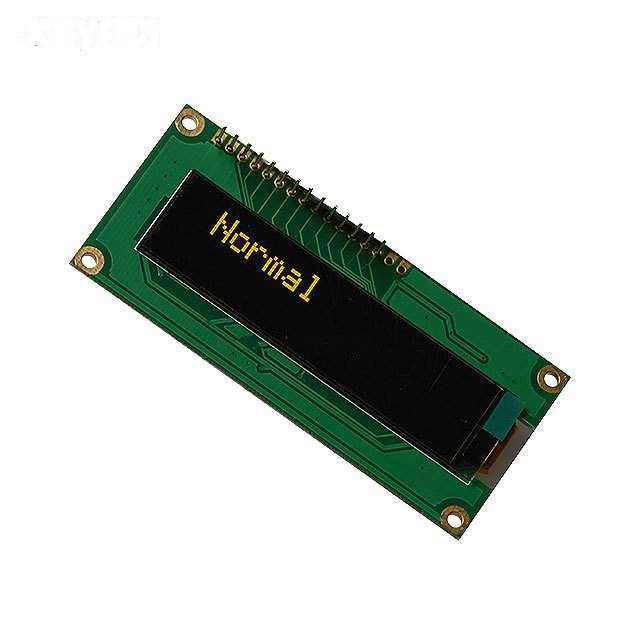

| Manufacturer Part Number: | LOD-H01602DP/A-Y |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9365 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Passive 5 x 7 Dots OLED Parallel, 8-Bit 80.00mm x 36.00mm x 3.80mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LOD-H01602DP/A-Y Datasheet |
| Internal Part Number | 898-LOD-H01602DP/A-Y | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | InfoVue™ OLED Display | |
| Online Catalog | OLED Displays | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 32 | |
| Display Format | 16 x 2 | |
| Character Format | 5 x 7 Dots | |
| Display Type | OLED | |
| Display Mode | Passive | |
| Character Size | 5.57mm H x 2.97mm W | |
| Outline L x W x H | 80.00mm x 36.00mm x 3.80mm | |
| Viewing Area | 58.22mm L x 13.52mm W | |
| Backlight | - | |
| Voltage - Supply | 2.4 V ~ 5.5 V | |
| Dot Size | 0.57mm W x 0.67mm H | |
| Interface | Parallel, 8-Bit | |
| Operating Temperature | -40°C ~ 80°C | |
| Text Color | Yellow | |
| Background Color | Black | |
| Standard Package | 360 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LOD-H01602DP/A-Y | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LOD-H01602DP/A-Y is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LOD-H01602DP/A-Y is new and unused, you can buy LOD-H01602DP/A-Y Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LOD-H01602DP/A-Y.
