| Manufacturer Part Number: | LNJ826W86RA |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 49010 Pieces |
| Unit Price: | Quote by Email |

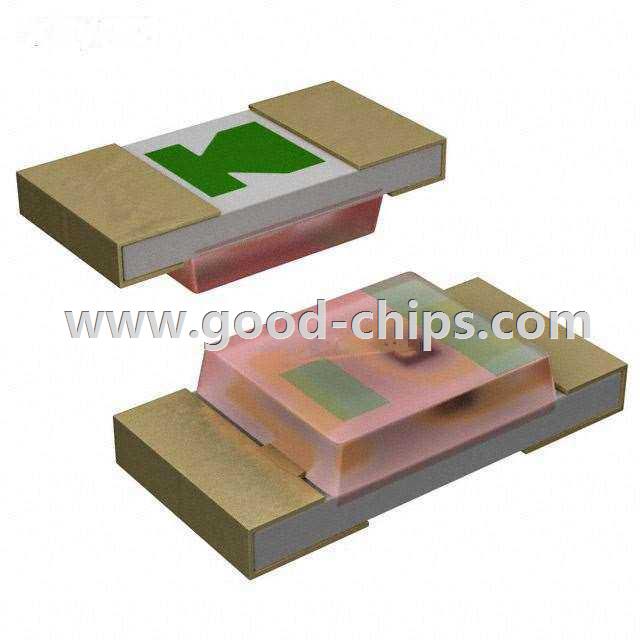

| Description: | Orange 605nm LED Indication - Discrete 1.92V 0603 (1608 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LNJ826W86RA Datasheet |
| Internal Part Number | 898-LNJ826W86RA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Manufacturer Product Page | LNJ826W86RA View all Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 0603 Rectangle with Flat Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Orange | |
| Lens Color | - | |
| Lens Transparency | - | |
| Millicandela Rating | 16.9mcd | |
| Lens Style/Size | Rectangle with Flat Top, 1.10mm x 0.80mm | |
| Voltage - Forward (Vf) (Typ) | 1.92V | |
| Current - Test | 10mA | |
| Viewing Angle | - | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 605nm | |
| Wavelength - Peak | 610nm | |
| Features | - | |
| Package / Case | 0603 (1608 Metric) | |
| Supplier Device Package | UTSS Type | |
| Size / Dimension | 1.60mm L x 0.80mm W | |
| Height (Max) | 0.42mm | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LNJ826W86RA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LNJ826W86RA is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of LNJ826W86RA is new and unused, you can buy LNJ826W86RA Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LNJ826W86RA.
