Manufacturer Part Number: | LNJ757W86RA |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | LED Indication - Discrete |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |
Description: | Red, Green, Blue (RGB) 628nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3V Green, 2.95V Blue 4-SMD, No Lead |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LNJ757W86RA Datasheet |
Internal Part Number | 898-LNJ757W86RA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Wearables Technology Components | |
Manufacturer Product Page | LNJ757W86RA View All Specifications | |
Online Catalog | Tri-Color (RGB) Rectangle with Flat Top 4-SMD No Lead | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Panasonic Electronic Components | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Red, Green, Blue (RGB) | |
Lens Color | - | |
Lens Transparency | - | |
Millicandela Rating | 30mcd Red, 90mcd Green, 15mcd Blue | |
Lens Style/Size | Rectangle with Flat Top, 1.30mm x 0.70mm | |
Voltage - Forward (Vf) (Typ) | 1.9V Red, 3V Green, 2.95V Blue | |
Current - Test | 5mA Red, 5mA Green, 5mA Blue | |
Viewing Angle | - | |
Mounting Type | Surface Mount | |
Wavelength - Dominant | 628nm Red, 525nm Green, 470nm Blue | |
Wavelength - Peak | 643nm Red, 520nm Green, 462nm Blue | |
Features | - | |

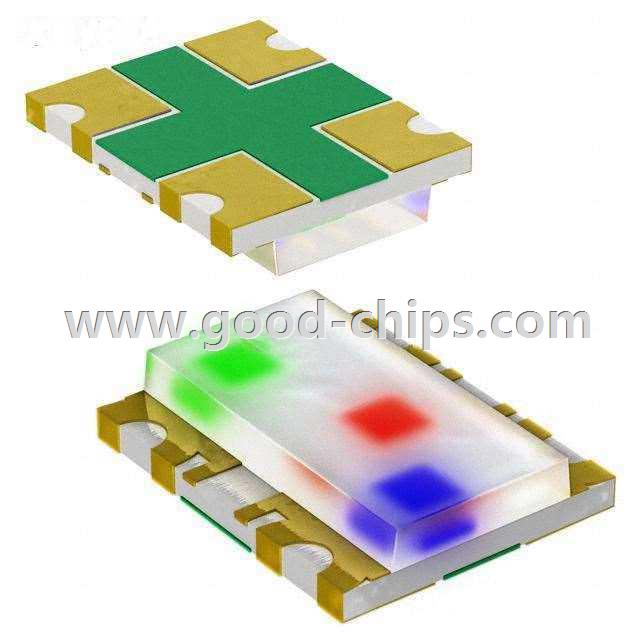

Package / Case | 4-SMD, No Lead | |
Supplier Device Package | Chip LED | |
Size / Dimension | 1.30mm L x 1.05mm W | |
Height (Max) | 0.35mm | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LNJ757W86RA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LNJ757W86RA is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of LNJ757W86RA is new and unused, you can buy LNJ757W86RA Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LNJ757W86RA.
