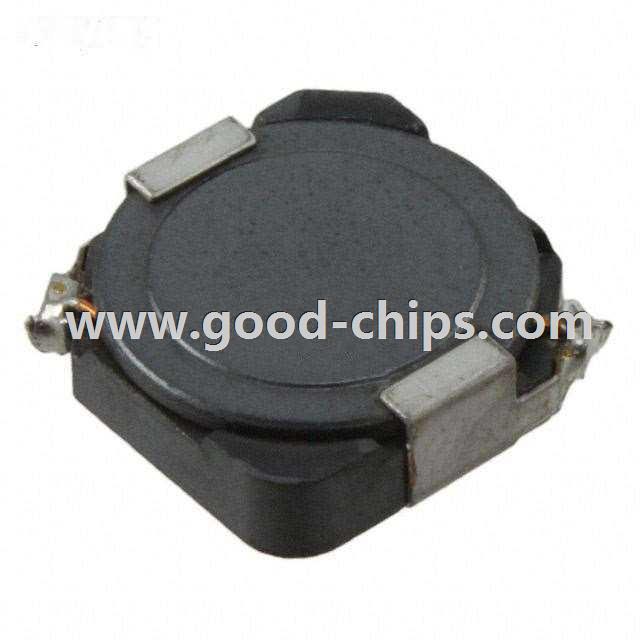

| Manufacturer Part Number: | LMXS1010N100LTAS |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10µH Shielded Wirewound Inductor 3.18A 59 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMXS1010N100LTAS Datasheet |
| Internal Part Number | 898-LMXS1010N100LTAS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | LMXS Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | AVX Corporation | |
| Series | LMXS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 10µH | |
| Tolerance | ±30% | |
| Current Rating | 3.18A | |
| Current - Saturation | - | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 59 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.414" L x 0.398" W (10.50mm x 10.30mm) | |
| Height - Seated (Max) | 0.122" (3.10mm) | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMXS1010N100LTAS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMXS1010N100LTAS is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of LMXS1010N100LTAS is new and unused, you can buy LMXS1010N100LTAS AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMXS1010N100LTAS.
