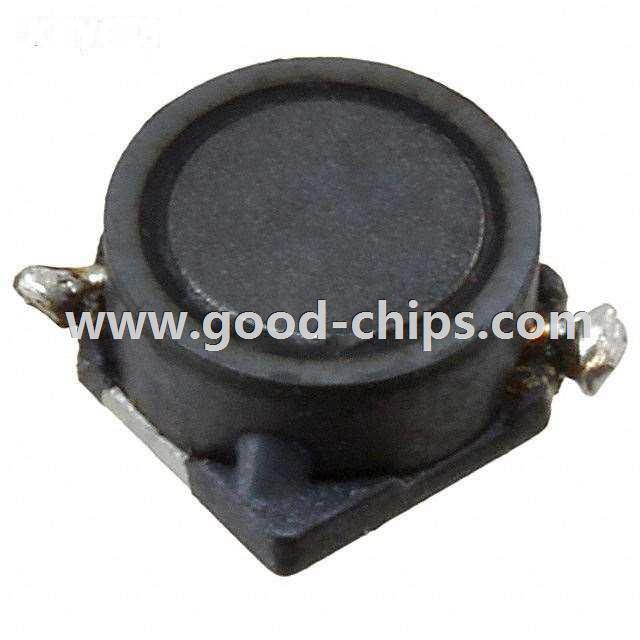

Manufacturer Part Number: | LMXS06C6M100FTAS |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Wirewound Inductor 1.3A 98 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LMXS06C6M100FTAS Datasheet |
Internal Part Number | 898-LMXS06C6M100FTAS | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | LMXS Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | AVX Corporation | |
Series | LMXS | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±20% | |
Current Rating | 1.3A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 98 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LMXS06C6M100FTAS | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LMXS06C6M100FTAS is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of LMXS06C6M100FTAS is new and unused, you can buy LMXS06C6M100FTAS AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMXS06C6M100FTAS.
