| Manufacturer Part Number: | LMS4684ITLX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 800 mOhm 12-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMS4684ITLX/NOPB Datasheet |
| Internal Part Number | 898-LMS4684ITLX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Process BCB Elimnation 12/Feb/2014 Wafer Process Revision A 14/Jul/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 800 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 1.11 mOhm | |
| Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 60ns, 40ns | |
| -3db Bandwidth | - | |
| Charge Injection | 200pC | |
| Channel Capacitance (CS(off), CD(off)) | - | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | -72dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

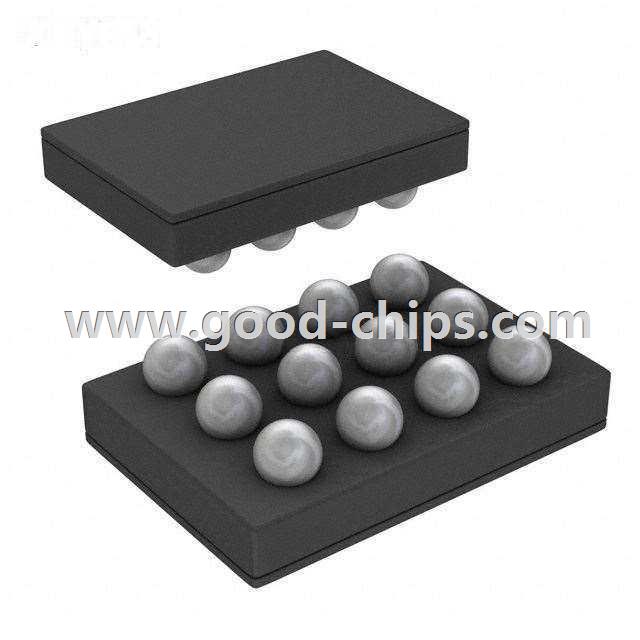

| Package / Case | 12-WFBGA, DSBGA | |
| Supplier Device Package | 12-DSBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMS4684ITLX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMS4684ITLX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LMS4684ITLX/NOPB is new and unused, you can buy LMS4684ITLX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMS4684ITLX/NOPB.
