Manufacturer Part Number: | LM5070SDX-50 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | PMIC - Power Over Ethernet (PoE) Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Power Over Ethernet Controller 1 Channel 802.3af (PoE) 16-WSON (5x5) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LM5070SDX-50 Datasheet |
Internal Part Number | 898-LM5070SDX-50 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Over Ethernet (PoE) Controllers | |
Manufacturer | Texas Instruments | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Controller (PD), DC/DC | |
Number of Channels | 1 | |
Power - Max | - | |
Internal Switch(s) | Both | |
Auxiliary Sense | No | |
Standards | 802.3af (PoE) | |
Voltage - Supply | 1.8 V ~ 75 V | |
Current - Supply | - | |
Operating Temperature | -40°C ~ 125°C | |

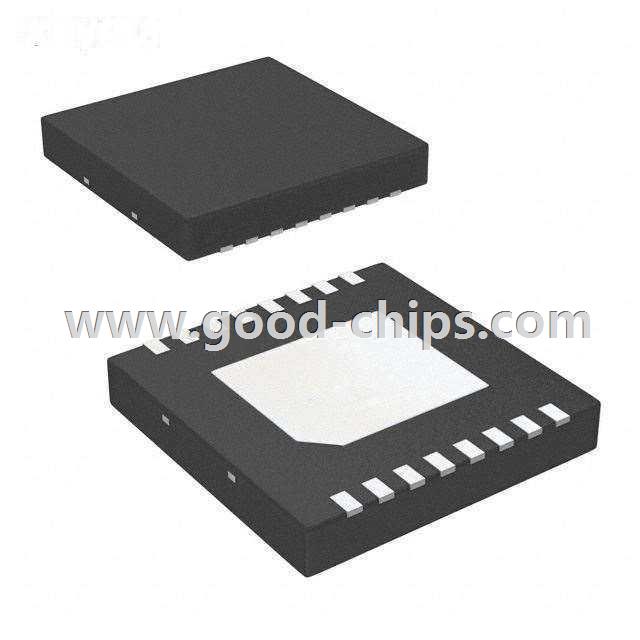

Package / Case | 16-WFDFN Exposed Pad | |
Supplier Device Package | 16-WSON (5x5) | |
Standard Package | 4,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LM5070SDX-50 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LM5070SDX-50 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM5070SDX-50 is new and unused, you can buy LM5070SDX-50 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM5070SDX-50.
