Manufacturer Part Number: | LM49200TL/NOPB |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Linear - Amplifiers - Audio |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Amplifier IC 2-Channel (Stereo) with Stereo Headphones Class AB 20-uSMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LM49200TL/NOPB Datasheet |
Internal Part Number | 898-LM49200TL/NOPB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Class AB Amplifier | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Audio | |
Manufacturer | Texas Instruments | |
Series | Boomer® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Class AB | |
Output Type | 2-Channel (Stereo) with Stereo Headphones | |
Max Output Power x Channels @ Load | 1.25W x 2 @ 8 Ohm; 38mW x 2 @ 32 Ohm | |
Voltage - Supply | 2.7 V ~ 5.5 V | |
Features | Depop, Differential Inputs, I²C, Shutdown, Thermal Protection, Volume Control | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Supplier Device Package | 20-uSMD | |

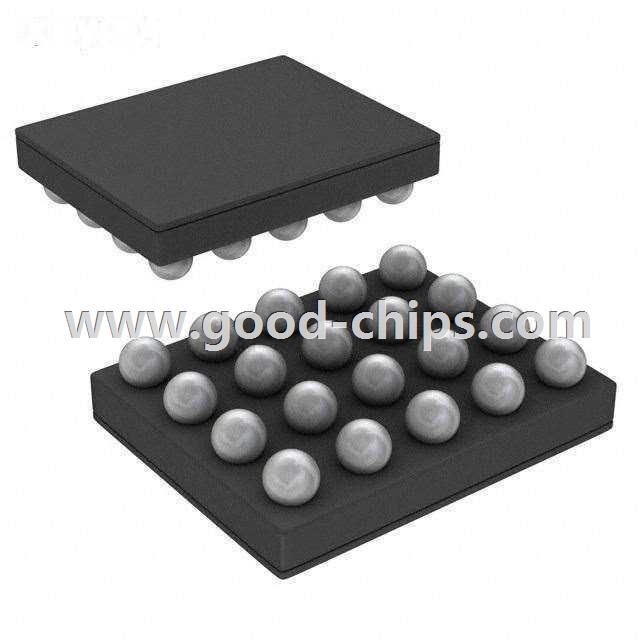

Package / Case | 20-UFBGA | |
Standard Package | 250 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LM49200TL/NOPB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LM49200TL/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM49200TL/NOPB is new and unused, you can buy LM49200TL/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM49200TL/NOPB.
