| Manufacturer Part Number: | LM431SACMLX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Voltage Reference |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shunt Voltage Reference IC 36V ±2% 100mA TO-243AA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM431SACMLX Datasheet |
| Internal Part Number | 898-LM431SACMLX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Lead Dimensions 19/April/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Reference | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Reference Type | Shunt | |
| Output Type | Adjustable | |
| Voltage - Output (Min/Fixed) | 2.5V | |
| Voltage - Output (Max) | 36V | |
| Current - Output | 100mA | |
| Tolerance | ±2% | |
| Temperature Coefficient | 50ppm/°C Typical | |
| Noise - 0.1Hz to 10Hz | - | |
| Noise - 10Hz to 10kHz | - | |
| Voltage - Input | - | |
| Current - Supply | - | |
| Current - Cathode | 1mA | |
| Operating Temperature | -25°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

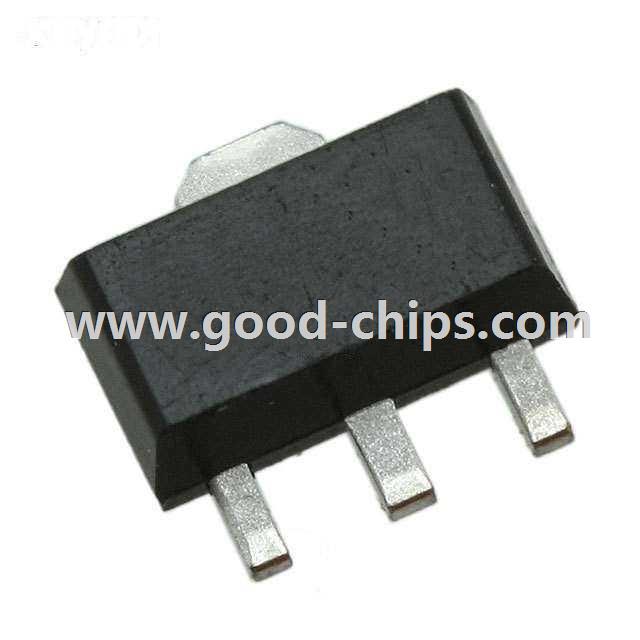

| Package / Case | TO-243AA | |
| Supplier Device Package | SOT-89-3 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM431SACMLX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM431SACMLX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of LM431SACMLX is new and unused, you can buy LM431SACMLX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM431SACMLX.
