| Manufacturer Part Number: | LM3500TLX-16/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) 400mA (Switch) 8-uSMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM3500TLX-16/NOPB Datasheet |
| Internal Part Number | 898-LM3500TLX-16/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting Driver Solutions | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 28/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 7V | |
| Voltage - Output | 16V | |
| Current - Output / Channel | 400mA (Switch) | |
| Frequency | 1MHz | |
| Dimming | - | |
| Applications | Backlight | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

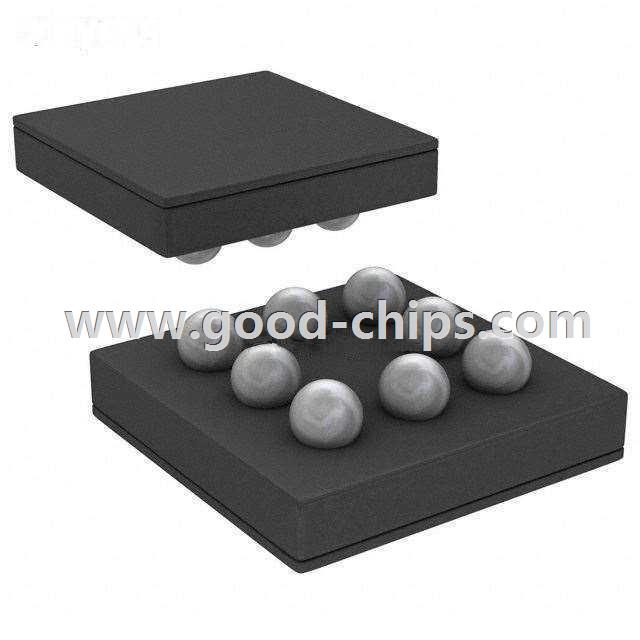

| Package / Case | 8-WFBGA | |
| Supplier Device Package | 8-uSMD | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM3500TLX-16/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM3500TLX-16/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM3500TLX-16/NOPB is new and unused, you can buy LM3500TLX-16/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM3500TLX-16/NOPB.
