| Manufacturer Part Number: | LM336BZ-2.5/LFT1 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Reference |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shunt Voltage Reference IC ±2% 10mA TO-226-3, TO-92-3 (TO-226AA) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM336BZ-2.5/LFT1 Datasheet |
| Internal Part Number | 898-LM336BZ-2.5/LFT1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Reference | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Reference Type | Shunt | |
| Output Type | Fixed | |
| Voltage - Output (Min/Fixed) | 2.49V | |
| Voltage - Output (Max) | - | |
| Current - Output | 10mA | |
| Tolerance | ±2% | |
| Temperature Coefficient | - | |
| Noise - 0.1Hz to 10Hz | - | |
| Noise - 10Hz to 10kHz | - | |
| Voltage - Input | - | |
| Current - Supply | - | |
| Current - Cathode | 400µA | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Through Hole | |

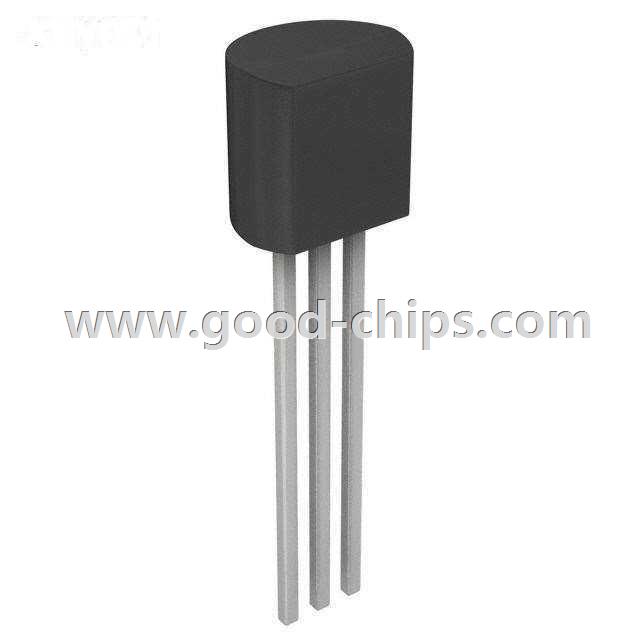

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Supplier Device Package | TO-92-3 | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM336BZ-2.5/LFT1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM336BZ-2.5/LFT1 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM336BZ-2.5/LFT1 is new and unused, you can buy LM336BZ-2.5/LFT1 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM336BZ-2.5/LFT1.
