| Manufacturer Part Number: | LM2700LD-ADJ/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 12402 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost Switching Regulator IC Positive Adjustable 1.26V 1 Output 2.55A (Switch) 14-WFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM2700LD-ADJ/NOPB Datasheet |
| Internal Part Number | 898-LM2700LD-ADJ/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | LM2700 Design with WEBENCH® Power Designer | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Boost (Step-Up) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Function | Step-Up | |
| Output Configuration | Positive | |
| Topology | Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.2V | |
| Voltage - Input (Max) | 12V | |
| Voltage - Output (Min/Fixed) | 1.26V | |
| Voltage - Output (Max) | 17.5V | |
| Current - Output | 2.55A (Switch) | |
| Frequency - Switching | 600kHz, 1.25MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

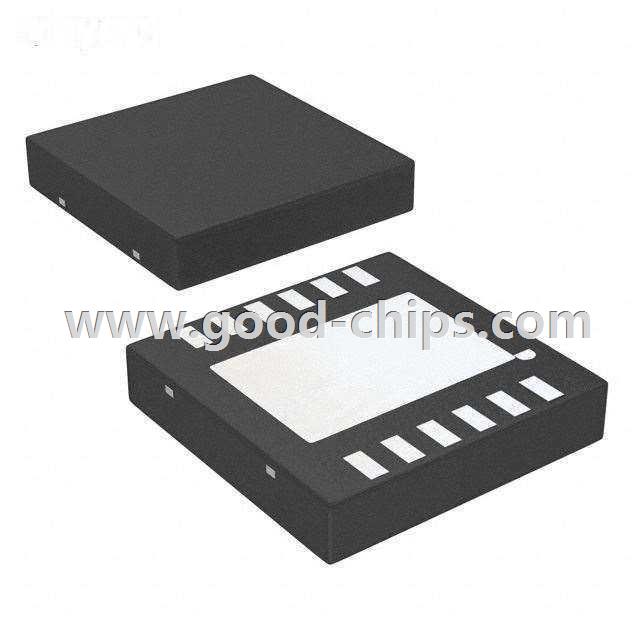

| Package / Case | 14-WFDFN Exposed Pad | |
| Supplier Device Package | 14-WSON (4x4) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM2700LD-ADJ/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM2700LD-ADJ/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM2700LD-ADJ/NOPB is new and unused, you can buy LM2700LD-ADJ/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM2700LD-ADJ/NOPB.
