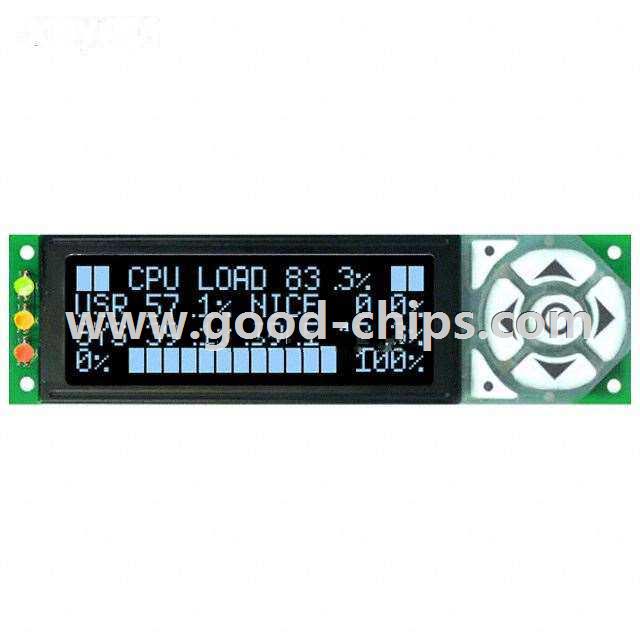

Manufacturer Part Number: | LK204-7T-1U-TCI |
---|---|
Manufacturer: | Matrix Orbital |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Character LCD Display Module Transmissive 5 x 8 Dots TN - Twisted Nematic LED - Red/Green/Blue I²C, RS232, TTL 144.00mm x 38.00mm x 34.30mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LK204-7T-1U-TCI Datasheet |
Internal Part Number | 898-LK204-7T-1U-TCI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | 12C Displays Firmware Update 11/Oct/2011 | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | Matrix Orbital | |
Series | - | |
Part Status | Active | |
Number of Characters | 80 | |
Display Format | 20 x 4 | |
Character Format | 5 x 8 Dots | |
Display Type | TN - Twisted Nematic | |
Display Mode | Transmissive | |
Character Size | 5.15mm H x 3.20mm W | |
Outline L x W x H | 144.00mm x 38.00mm x 34.30mm | |
Viewing Area | 82.00mm L x 28.40mm W | |
Backlight | LED - Red/Green/Blue | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Dot Size | 0.60mm W x 0.65mm H | |
Interface | I²C, RS232, TTL | |
Operating Temperature | 0°C ~ 50°C | |
Text Color | Red/Green/Blue | |
Background Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LK204-7T-1U-TCI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LK204-7T-1U-TCI is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of LK204-7T-1U-TCI is new and unused, you can buy LK204-7T-1U-TCI Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LK204-7T-1U-TCI.
