Manufacturer Part Number: | LK204-25-USB-WB-E |
---|---|
Manufacturer: | Matrix Orbital |
Product Category: | Display Modules - LCD, OLED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

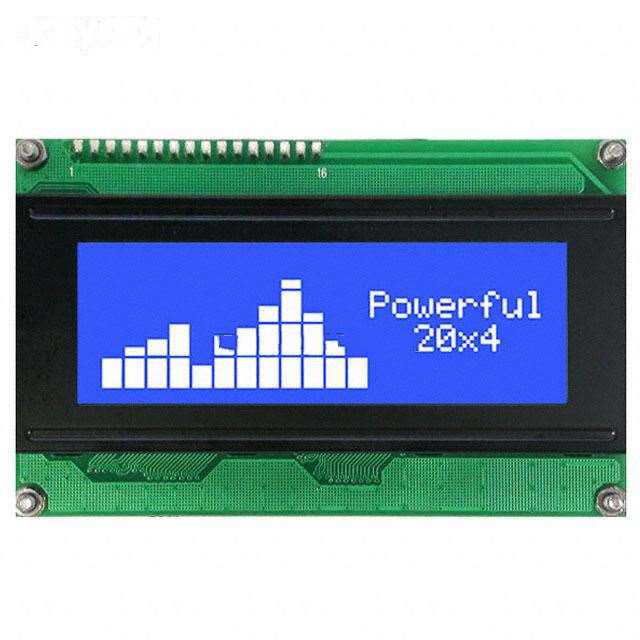

Description: | Character LCD Display Module Transmissive 5 x 8 Dots LCD - Color LED - Blue USB 98.00mm x 60.00mm x 27.70mm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LK204-25-USB-WB-E Datasheet |
Internal Part Number | 898-LK204-25-USB-WB-E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | 12C Displays Firmware Update 11/Oct/2011 | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED Character and Numeric | |
Manufacturer | Matrix Orbital | |
Series | - | |
Part Status | Active | |
Number of Characters | 80 | |
Display Format | 20 x 4 | |
Character Format | 5 x 8 Dots | |
Display Type | LCD - Color | |
Display Mode | Transmissive | |
Character Size | 4.75mm H x 2.95mm W | |
Outline L x W x H | 98.00mm x 60.00mm x 27.70mm | |
Viewing Area | 76.00mm L x 25.20mm W | |
Backlight | LED - Blue | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Dot Size | 0.55mm W x 0.55mm H | |
Interface | USB | |
Operating Temperature | -20°C ~ 70°C | |
Text Color | White | |
Background Color | Blue | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LK204-25-USB-WB-E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LK204-25-USB-WB-E is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of LK204-25-USB-WB-E is new and unused, you can buy LK204-25-USB-WB-E Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LK204-25-USB-WB-E.
