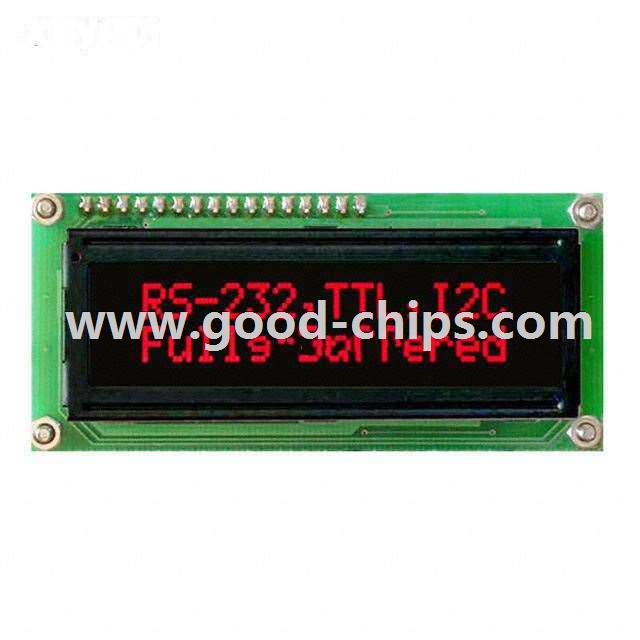

| Manufacturer Part Number: | LK162-12-R-E |
|---|---|
| Manufacturer: | Matrix Orbital |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module 5 x 8 Dots LCD - Monochrome LED - Red I²C, RS232, TTL 80.00mm x 36.00mm x 28.82mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LK162-12-R-E Datasheet |
| Internal Part Number | 898-LK162-12-R-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | LK/VK162-12 PCB Update 28/Nov/2011 | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Matrix Orbital | |
| Series | LK162-12 | |
| Part Status | Active | |
| Number of Characters | 32 | |
| Display Format | 16 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | LCD - Monochrome | |
| Display Mode | - | |
| Character Size | 5.55mm H x 2.95mm W | |
| Outline L x W x H | 80.00mm x 36.00mm x 28.82mm | |
| Viewing Area | 56.20mm L x 11.50mm W | |
| Backlight | LED - Red | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Dot Size | 0.55mm W x 0.65mm H | |
| Interface | I²C, RS232, TTL | |
| Operating Temperature | -20°C ~ 70°C | |
| Text Color | Red | |
| Background Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LK162-12-R-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LK162-12-R-E is in stock for immediate shipping now. We are the distributor of Matrix Orbital all series components. The condition of LK162-12-R-E is new and unused, you can buy LK162-12-R-E Matrix Orbital with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LK162-12-R-E.
