| Manufacturer Part Number: | LIS3MDLTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Magnetic Sensors - Linear, Compass (ICs) |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MAGNETOMETER 3-AXIS 12LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LIS3MDLTR Datasheet |
| Internal Part Number | 898-LIS3MDLTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | IoT Wireless Sensor Nodes | |
| Online Catalog | LIS3MDL | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Linear, Compass (ICs) | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | * | |
| Part Status | Active | |
| Type | Compass/Magnetometer | |
| Technology | Magnetoresistive | |
| Axis | X, Y, Z | |
| Sensing Range | ±0.4mT, ±0.8mT, ±1.2mT, ±1.6mT | |
| Voltage - Supply | 1.9 V ~ 3.6 V | |
| Current - Supply (Max) | 270µA (Typ) | |
| Current - Output (Max) | - | |
| Output Type | I²C, SPI | |
| Resolution | 16 b | |
| Bandwidth | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | Selectable Scale | |

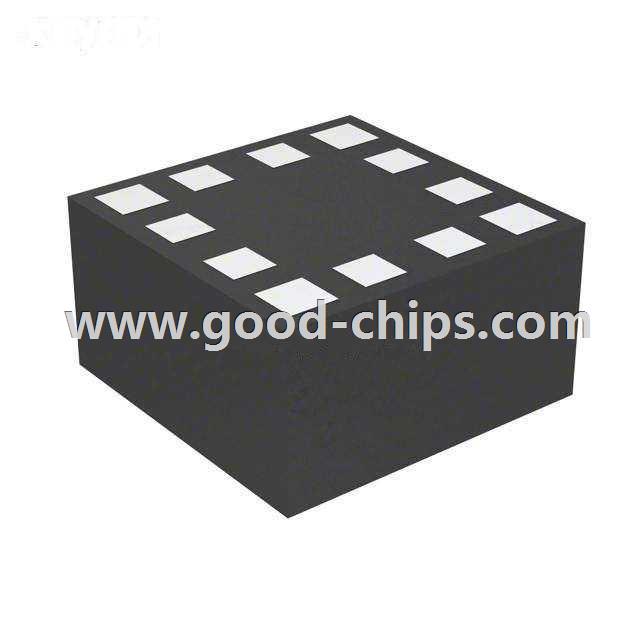

| Package / Case | 12-VFLGA | |
| Supplier Device Package | * | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LIS3MDLTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LIS3MDLTR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of LIS3MDLTR is new and unused, you can buy LIS3MDLTR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LIS3MDLTR.
