| Manufacturer Part Number: | LH79524N0F100A1;55 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM7® BlueStreak ; LH7 Microcontroller IC 32-Bit 76.2MHz ROMless 208-LFBGA (14x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LH79524N0F100A1;55 Datasheet |
| Internal Part Number | 898-LH79524N0F100A1;55 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Bluestreak Series Overview | |
| Video File | USB Overview Ethernet Overview | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 29/Dec/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | NXP Semiconductors | |
| Series | BlueStreak ; LH7 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | ARM7® | |
| Core Size | 32-Bit | |
| Speed | 76.2MHz | |
| Connectivity | EBI/EMI, Ethernet, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB | |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |
| Number of I/O | 108 | |
| Program Memory Size | - | |
| Program Memory Type | ROMless | |
| EEPROM Size | - | |
| RAM Size | 16K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.7 V ~ 3.6 V | |
| Data Converters | A/D 10x10b | |
| Oscillator Type | External | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

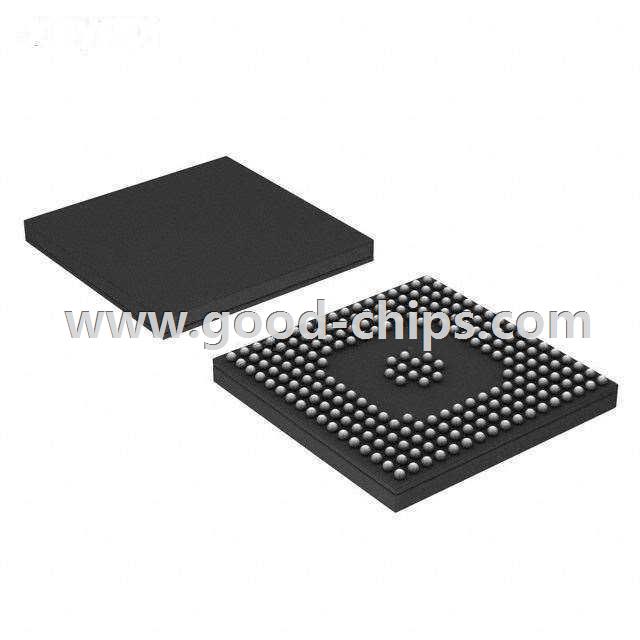

| Package / Case | 208-LFBGA | |
| Supplier Device Package | 208-LFBGA (14x14) | |
| Standard Package | 595 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LH79524N0F100A1;55 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LH79524N0F100A1;55 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of LH79524N0F100A1;55 is new and unused, you can buy LH79524N0F100A1;55 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LH79524N0F100A1;55.
