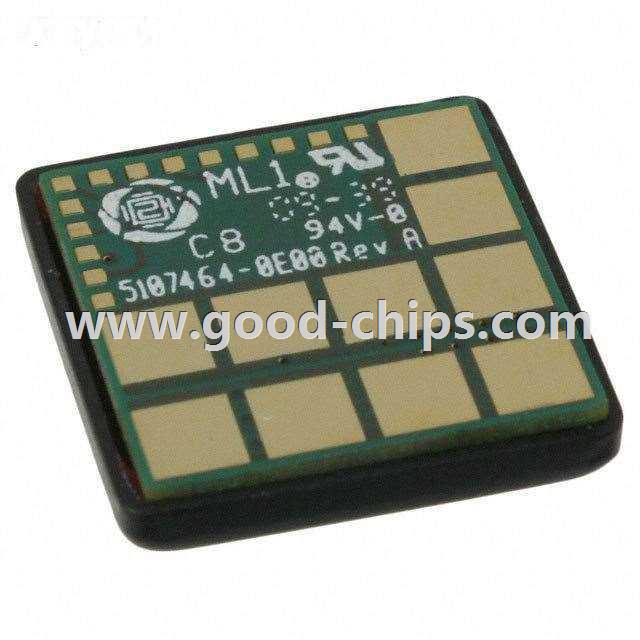

Manufacturer Part Number: | LGA10C-00SADJJ |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 10A ADJ OUT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LGA10C-00SADJJ Datasheet |
Internal Part Number | 898-LGA10C-00SADJJ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LGA Non-Isolated Power Converters | |
Featured Product | LGA C Series Power Supplies | |
PCN Packaging | CSA Marking 20/Sep/2013 | |
Online Catalog | LGA C Series | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | LGAC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 3V | |
Voltage - Input (Max) | 14V | |
Voltage - Output 1 | 0.59 ~ 5.1 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 10A | |
Power (Watts) - Manufacture Series | 50W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OVP, SCP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 24-LGA | |
Size / Dimension | 0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 92% | |
Power (Watts) - Max | 51W | |
Standard Package | 600 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LGA10C-00SADJJ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LGA10C-00SADJJ is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LGA10C-00SADJJ is new and unused, you can buy LGA10C-00SADJJ Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LGA10C-00SADJJ.
