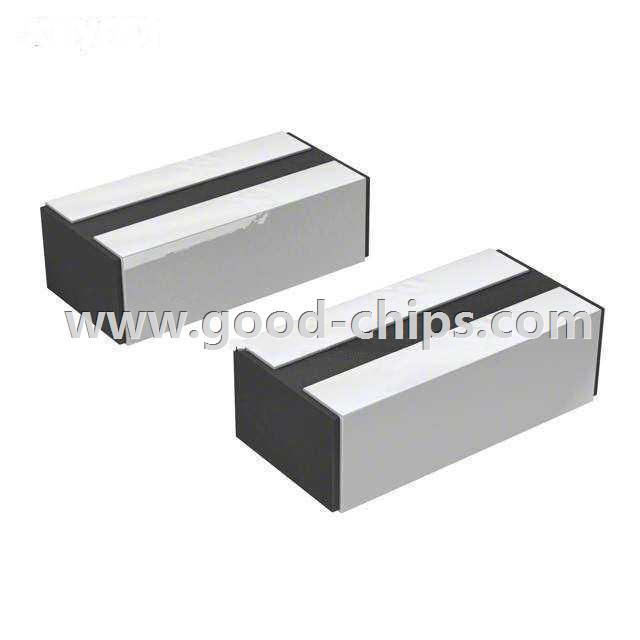

Manufacturer Part Number: | LG226Z104MAT2S1 |
---|---|
Manufacturer: | AVX Corporation |
Product Category: | Ceramic Capacitors |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | 0.10µF 6.3V Ceramic Capacitor X7S 0306 (0816 Metric) 0.030" L x 0.063" W (0.76mm x 1.60mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LG226Z104MAT2S1 Datasheet |
Internal Part Number | 898-LG226Z104MAT2S1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Component Solutions for Smart Meter Applications LGA Low Inductance MLCC's | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | LGA Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | AVX Corporation | |
Series | LG22 (LGA) | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Capacitance | 0.10µF | |
Tolerance | ±20% | |
Voltage - Rated | 6.3V | |
Temperature Coefficient | X7S | |
Mounting Type | Surface Mount, MLCC | |
Operating Temperature | -55°C ~ 125°C | |
Applications | Bypass, Decoupling | |
Ratings | - | |
Package / Case | 0306 (0816 Metric) | |
Size / Dimension | 0.030" L x 0.063" W (0.76mm x 1.60mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.022" (0.55mm) | |
Lead Spacing | - | |
Features | Low ESL (Reverse Geometry) | |
Lead Style | - | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LG226Z104MAT2S1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LG226Z104MAT2S1 is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of LG226Z104MAT2S1 is new and unused, you can buy LG226Z104MAT2S1 AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LG226Z104MAT2S1.
