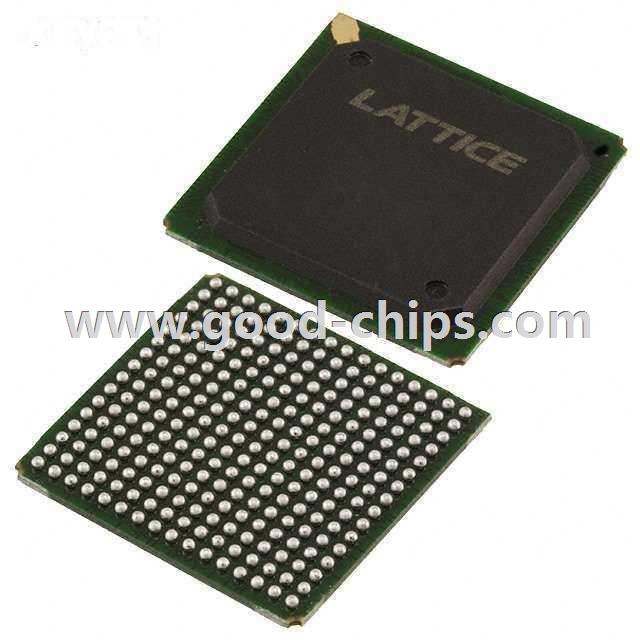

| Manufacturer Part Number: | LFE2M20SE-5FN256C |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - FPGAs (Field Programmable Gate Array) |
| Available Quantity: | 9111 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC FPGA 140 I/O 256FBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LFE2M20SE-5FN256C Datasheet |
| Internal Part Number | 898-LFE2M20SE-5FN256C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices Cu Wire 01/Jul/2013 | |
| PCN Assembly/Origin | Alternate Qualified Test Site 30/Sep/2013 Alternate Assembly Revision B 17/Nov/2014 Alternate Assembly/Test Site 14/Apr/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ECP2/2M | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - FPGAs (Field Programmable Gate Array) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | ECP2M | |
| Part Status | Active | |
| Number of LABs/CLBs | 2375 | |
| Number of Logic Elements/Cells | 19000 | |
| Total RAM Bits | 1246208 | |
| Number of I/O | 140 | |
| Number of Gates | - | |
| Voltage - Supply | 1.14 V ~ 1.26 V | |
| Mounting Type | Surface Mount | |
| Operating Temperature | 0°C ~ 85°C (TJ) | |
| Package / Case | 256-BGA | |
| Supplier Device Package | 256-FPBGA (17x17) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LFE2M20SE-5FN256C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LFE2M20SE-5FN256C is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LFE2M20SE-5FN256C is new and unused, you can buy LFE2M20SE-5FN256C Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LFE2M20SE-5FN256C.
