| Manufacturer Part Number: | LFE2-50E-LCDPRO-EVN |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LFE2-50E 5FN484C Lattice XP2™, EPC2, LCD-Pro™ Series Interface, Touch Screen Controller Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LFE2-50E-LCDPRO-EVN Datasheet |
| Internal Part Number | 898-LFE2-50E-LCDPRO-EVN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | Lattice XP2™, EPC2, LCD-Pro™ | |
| Part Status | Obsolete | |
| Main Purpose | Interface, Touch Screen Controller | |
| Embedded | Yes, FPGA / CPLD | |
| Utilized IC / Part | LFE2-50E 5FN484C | |
| Primary Attributes | 7" 800x480 WVGA | |
| Secondary Attributes | Resistive 4-Wire Touch Screen | |

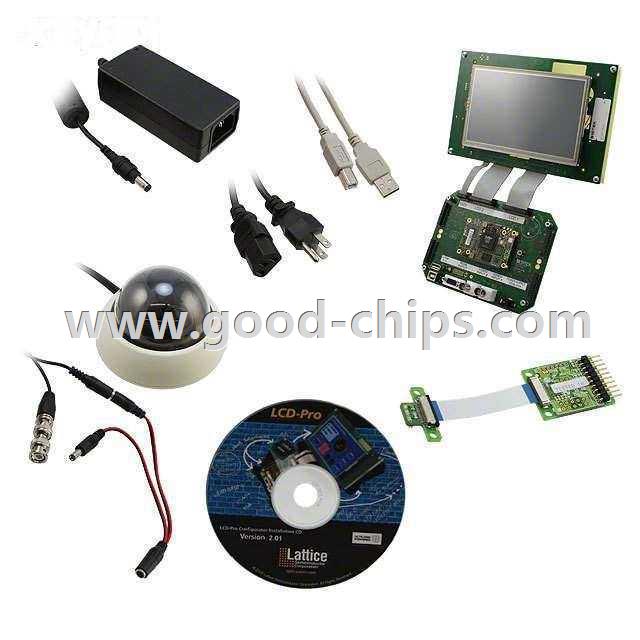

| Supplied Contents | Board, FPGA Module, Display, Cable, Cable Adapter, Camera, CD, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LFE2-50E-LCDPRO-EVN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LFE2-50E-LCDPRO-EVN is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LFE2-50E-LCDPRO-EVN is new and unused, you can buy LFE2-50E-LCDPRO-EVN Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LFE2-50E-LCDPRO-EVN.
