| Manufacturer Part Number: | LF1206E152R-10 |
|---|---|
| Manufacturer: | Laird-Signal Integrity Products |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 946 Ohm Impedance Ferrite Bead 1206 (3216 Metric) Surface Mount Power, Signal Line 500mA 1 Lines 300 mOhm Max DCR -40°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LF1206E152R-10 Datasheet |
| Internal Part Number | 898-LF1206E152R-10 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | DA/HZ/LF Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | Laird-Signal Integrity Products | |
| Series | LF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Power, Signal Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 946 Ohm @ 100MHz | |
| Current Rating (Max) | 500mA | |
| DC Resistance (DCR) (Max) | 300 mOhm | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |

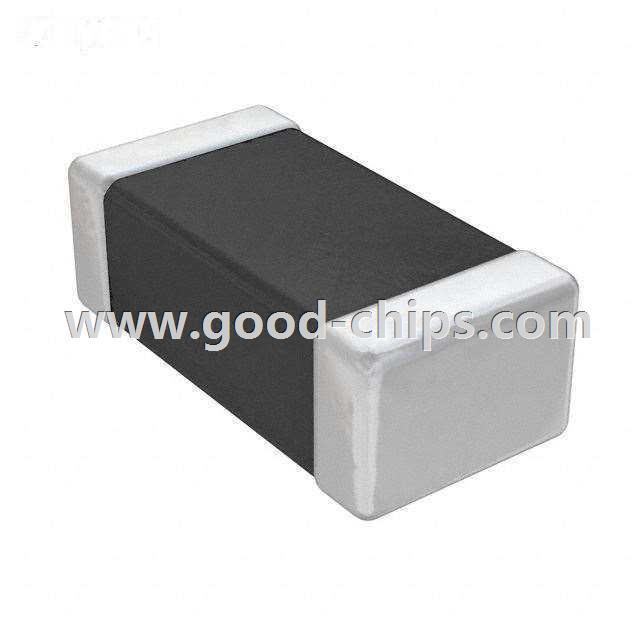

| Package / Case | 1206 (3216 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.051" (1.30mm) | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LF1206E152R-10 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LF1206E152R-10 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of LF1206E152R-10 is new and unused, you can buy LF1206E152R-10 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LF1206E152R-10.
