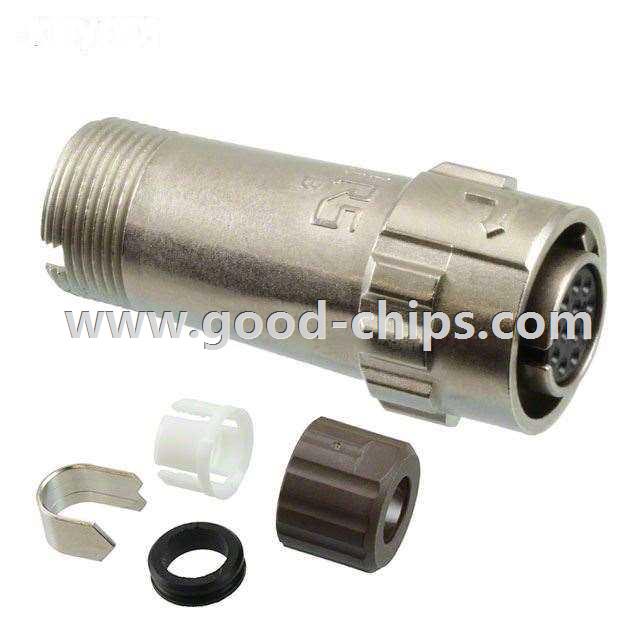

Manufacturer Part Number: | LF10WBPD-12S |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Circular Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LF10WBPD-12S Datasheet |
Internal Part Number | 898-LF10WBPD-12S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Waterproof Power Connectors - Hirose | |
Online Catalog | LF Series | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | LF | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Plug, Female Sockets | |
Number of Positions | 12 | |
Shell Size - Insert | 10 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Cup | |
Fastening Type | Bayonet Lock | |
Orientation | Keyed | |
Ingress Protection | IP68 - Dust Tight, Waterproof | |
Shell Material, Finish | Zinc Alloy, Nickel Plated | |
Contact Finish | Gold | |
Features | Shielded | |
Contact Finish Thickness | - | |
Current Rating | 2A | |
Voltage - Rated | 30VAC, 42VDC | |
Operating Temperature | -25°C ~ 85°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LF10WBPD-12S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LF10WBPD-12S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of LF10WBPD-12S is new and unused, you can buy LF10WBPD-12S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LF10WBPD-12S.
