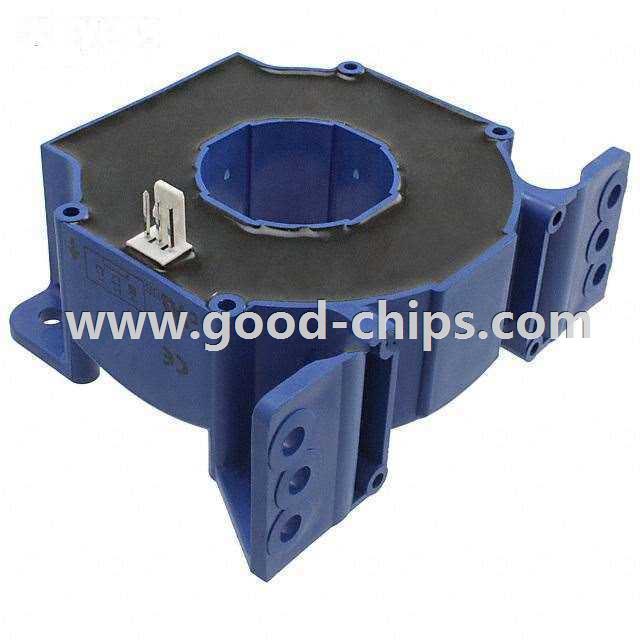

| Manufacturer Part Number: | LF 510-S |
|---|---|
| Manufacturer: | LEM USA Inc. |
| Product Category: | Current Transducers |
| Available Quantity: | 9114 Pieces |
| Unit Price: | Quote by Email |
| Description: | Current Sensor 500A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LF 510-S Datasheet |
| Internal Part Number | 898-LF 510-S | |
| Manufacturer Lead time | 6-8 weeks | |
| 지위 | New & Unused, Original Sealed | |
| Product Training Modules | LF xx10 Range Overview | |
| RoHS Information | LF 510-S Environmental Profile | |
| Featured Product | LF xx10 Series Current Transducers | |
| Online Catalog | LF | |
| Category | Sensors, Transducers | |
| Family | Current Transducers | |
| Manufacturer | LEM USA Inc. | |
| Series | LF | |
| Packaging | Bulk | |
| Part Status | Active | |
| For Measuring | AC/DC | |
| Sensor Type | Hall Effect, Closed Loop | |
| Current - Sensing | 500A | |
| Number of Channels | 1 | |
| Output | Ratiometric, Current | |
| Sensitivity | 0.2mA/A | |
| Frequency | 200kHz | |
| Linearity | ±0.1% | |
| Accuracy | 0.5% | |
| Voltage - Supply | 14.25 V ~ 25.2 V | |
| Response Time | 0.5µs | |
| Current - Supply (Max) | 48mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Polarization | Bidirectional | |
| Mounting Type | Panel Mount | |
| Package / Case | Module, Single Pass Through | |
| Standard Package | 9 | |
| 무게 | 0.001 KG | |
| 신청 | Email for details | |
| Replacement Part | LF 510-S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LF 510-S is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of LF 510-S is new and unused, you can buy LF 510-S LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LF 510-S.
