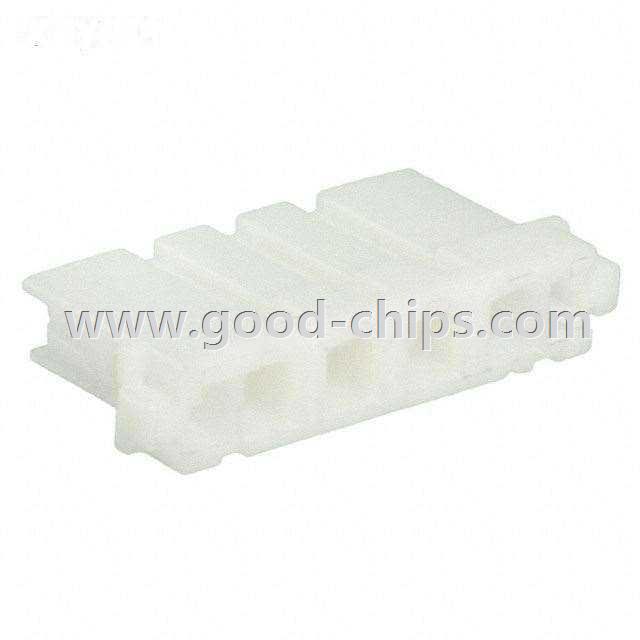

Manufacturer Part Number: | LEXR-04V-S(HF) |
---|---|
Manufacturer: | JST Sales America Inc. |
Product Category: | Solid State Lighting Connectors |
Available Quantity: | 9981 Pieces |
Unit Price: | Quote by Email |
Description: | SSL Connector 4 Position Receptacle Housing for Socket Contact Board to Cable/Wire 0.098" (2.50mm) Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LEXR-04V-S(HF) Datasheet |
Internal Part Number | 898-LEXR-04V-S(HF) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Featured Product | LEX Series Wire-to-Board Sub-Miniature Connector | |
Online Catalog | LEX Series | |
Category | Connectors, Interconnects | |
Family | Solid State Lighting Connectors | |
Manufacturer | JST Sales America Inc. | |
Series | LEX | |
Packaging | Bulk | |
Part Status | Active | |
Style | Board to Cable/Wire | |
Connector Type | Receptacle Housing for Socket Contact | |
Number of Positions | 4 | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Pitch | 0.098" (2.50mm) | |
Fastening Type | - | |
Features | - | |
Housing Color | Natural | |
Wire Gauge | - | |
Contact Material | - | |
Contact Finish | - | |
Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | 300V | |
Current Rating | 3A (22 AWG) | |
Ingress Protection | - | |
Mating Cycles | - | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LEXR-04V-S(HF) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LEXR-04V-S(HF) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of LEXR-04V-S(HF) is new and unused, you can buy LEXR-04V-S(HF) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LEXR-04V-S(HF).
