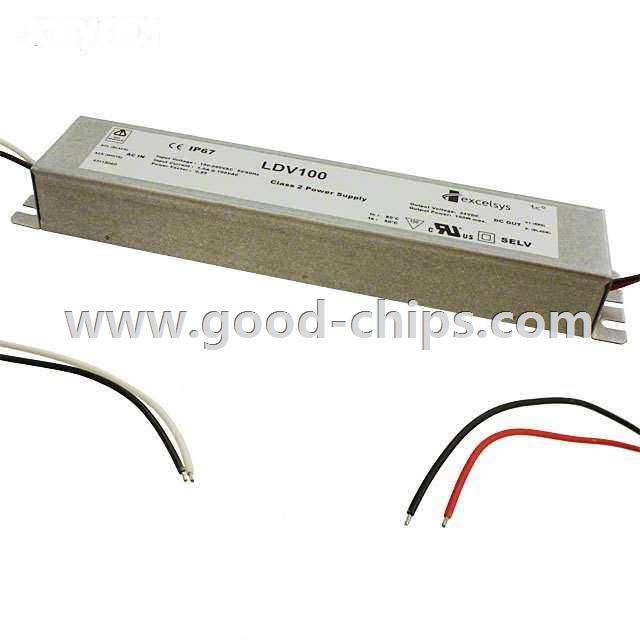

| Manufacturer Part Number: | LDV100-024SN |
|---|---|
| Manufacturer: | Excelsys Technologies Ltd |
| Product Category: | LED Drivers |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.83A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDV100-024SN Datasheet |
| Internal Part Number | 898-LDV100-024SN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | LED RoHS Delcaration | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | LDV Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Excelsys Technologies Ltd | |
| Series | LDV | |
| Part Status | Active | |
| Type | Constant Voltage | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 90VAC | |
| Voltage - Input (Max) | 264VAC | |
| Voltage - Output | 24V | |
| Current - Output (Max) | 3.83A | |
| Power (Watts) | 100W | |
| Voltage - Isolation | 3.75kV (3750V) | |
| Dimming | - | |
| Features | OCP, OTP, OVP, SCP | |
| Ratings | IP67 | |
| Operating Temperature | -30°C ~ 50°C | |
| Efficiency | 91% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 9.09" L x 1.57" W x 1.12" H (231.0mm x 40.0mm x 28.4mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CSA, EN, UL | |
| Weight | 0.001 KG | |
| Standard Package | 1 | |
| Application | Email for details | |
| Replacement Part | LDV100-024SN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDV100-024SN is in stock for immediate shipping now. We are the distributor of Excelsys Technologies Ltd all series components. The condition of LDV100-024SN is new and unused, you can buy LDV100-024SN Excelsys Technologies Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDV100-024SN.
