Manufacturer Part Number: | LDS8724 |
---|---|
Manufacturer: | IXYS |
Product Category: | PMIC - LED Drivers |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 1.9A (Switch) 8-TDFN (2x3) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LDS8724 Datasheet |
Internal Part Number | 898-LDS8724 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Online Catalog | DC DC Regulator | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - LED Drivers | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | DC DC Regulator | |
Topology | Step-Up (Boost) | |
Internal Switch(s) | Yes | |
Number of Outputs | 1 | |
Voltage - Supply (Min) | 2.7V | |
Voltage - Supply (Max) | 5.5V | |
Voltage - Output | - | |
Current - Output / Channel | 1.9A (Switch) | |
Frequency | 1MHz | |
Dimming | PWM | |
Applications | Backlight | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

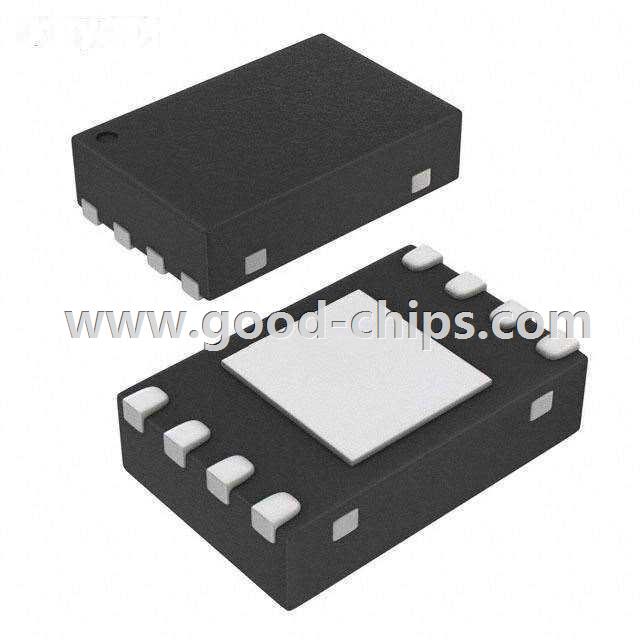

Package / Case | 8-WFDFN Exposed Pad | |
Supplier Device Package | 8-TDFN (2x3) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LDS8724 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LDS8724 is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of LDS8724 is new and unused, you can buy LDS8724 IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDS8724.
