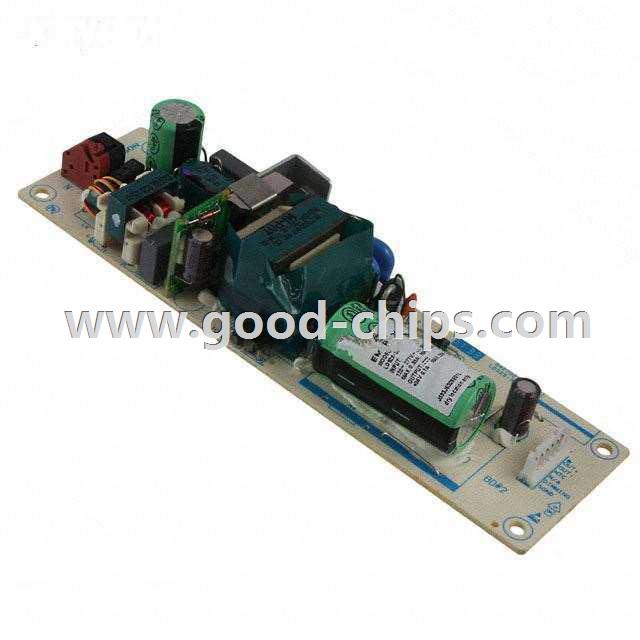

| Manufacturer Part Number: | LDS25-36-H03F |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 26 ~ 36 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDS25-36-H03F Datasheet |
| Internal Part Number | 898-LDS25-36-H03F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LDS Series Converters | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | LDS25 | |
| Part Status | Active | |
| Type | Constant Current, Voltage | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 120VAC | |
| Voltage - Input (Max) | 277VAC | |
| Voltage - Output | 26 ~ 36 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 25W | |
| Voltage - Isolation | - | |
| Dimming | Analog | |
| Features | OTP, OVP, SCP | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Efficiency | 86% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 9.67" L x 1.65" W x 1.05" H (245.5mm x 42.0mm x 26.7mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, CSA, EN, UL | |
| Weight | 0.001 KG | |
| Standard Package | 90 | |
| Application | Email for details | |
| Replacement Part | LDS25-36-H03F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDS25-36-H03F is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LDS25-36-H03F is new and unused, you can buy LDS25-36-H03F Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDS25-36-H03F.
