Manufacturer Part Number: | LDS-SMHTA5602RISUG |
---|---|
Manufacturer: | Lumex Opto/Components Inc. |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

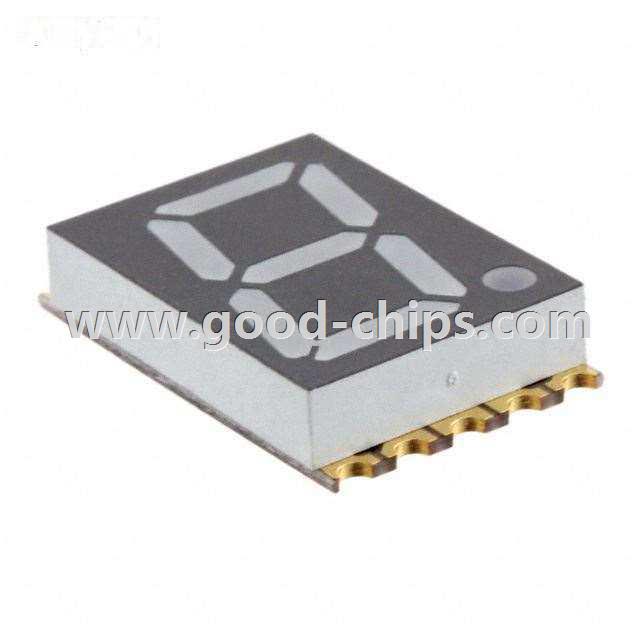

Description: | Character LED Display Module Green 7-Segment 1 Character Common Anode 2.25V 20mA 0.669" H x 0.492" W x 0.154" D (17.00mm x 12.50mm x 3.90mm) 10-SMD (No Lead) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LDS-SMHTA5602RISUG Datasheet |
Internal Part Number | 898-LDS-SMHTA5602RISUG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | QuasarBrite™ LED Display | |
Online Catalog | Surface Mount High Temperature LED Displays | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Lumex Opto/Components Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Characters | 1 | |
Size / Dimension | 0.669" H x 0.492" W x 0.154" D (17.00mm x 12.50mm x 3.90mm) | |
Digit/Alpha Size | 0.56" (14.22mm) | |
Display Type | 7-Segment | |
Common Pin | Common Anode | |
Color | Green | |
Voltage - Forward (Vf) (Typ) | 2.25V | |
Current - Test | 20mA | |
Millicandela Rating | 4.5mcd | |
Wavelength - Peak | 568nm | |
Power Dissipation (Max) | 65mW | |
Package / Case | 10-SMD (No Lead) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LDS-SMHTA5602RISUG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LDS-SMHTA5602RISUG is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LDS-SMHTA5602RISUG is new and unused, you can buy LDS-SMHTA5602RISUG Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDS-SMHTA5602RISUG.
