| Manufacturer Part Number: | LDD-SMHTM5604RISIT |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

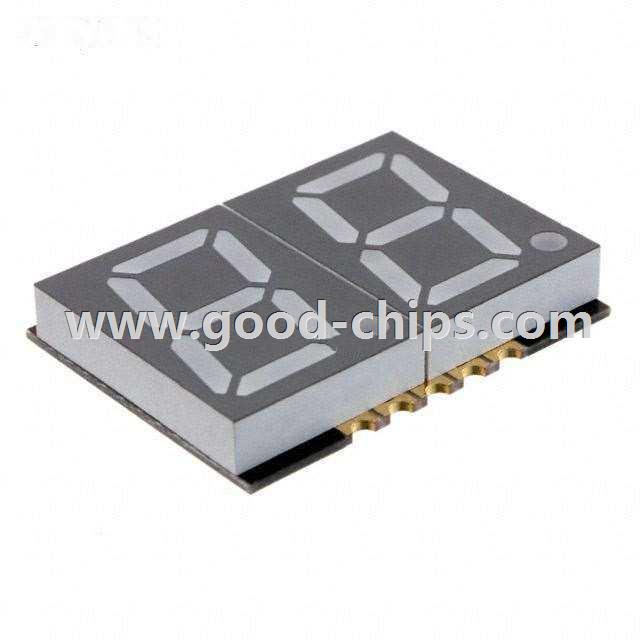

| Description: | Character LED Display Module Red 7-Segment 2 Character Common Anode 1.95V 20mA 0.669" H x 0.988" W x 0.154" D (17.00mm x 25.10mm x 3.90mm) 10-SMD (No Lead) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDD-SMHTM5604RISIT Datasheet |
| Internal Part Number | 898-LDD-SMHTM5604RISIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | QuasarBrite™ LED Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| Number of Characters | 2 | |
| Size / Dimension | 0.669" H x 0.988" W x 0.154" D (17.00mm x 25.10mm x 3.90mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 1.95V | |
| Current - Test | 20mA | |
| Millicandela Rating | 6mcd | |
| Wavelength - Peak | 640nm | |
| Power Dissipation (Max) | 60mW | |
| Package / Case | 10-SMD (No Lead) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LDD-SMHTM5604RISIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDD-SMHTM5604RISIT is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LDD-SMHTM5604RISIT is new and unused, you can buy LDD-SMHTM5604RISIT Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDD-SMHTM5604RISIT.
