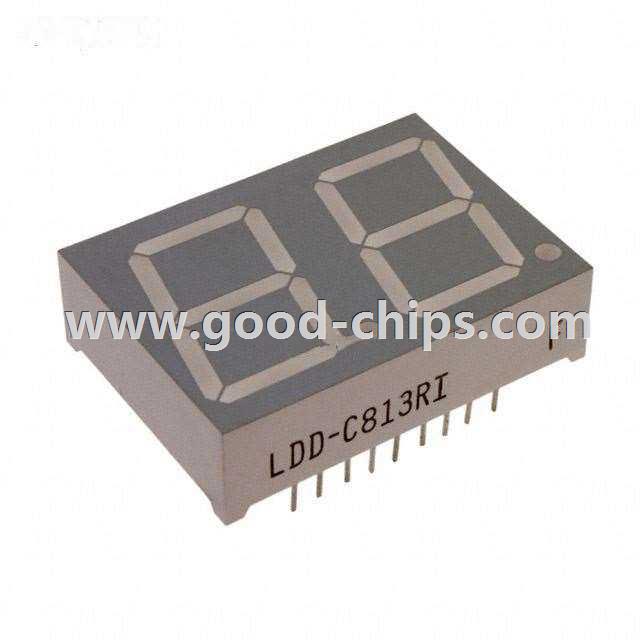

| Manufacturer Part Number: | LDD-C813RI |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Yellow 7-Segment 2 Character Common Cathode 2.1V 10mA 1.016" H x 1.409" W x 0.394" D (25.80mm x 35.80mm x 10.00mm) 18-DIP (0.866", 22.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDD-C813RI Datasheet |
| Internal Part Number | 898-LDD-C813RI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | 0.8in 2-Digit 7-Segment Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 1.016" H x 1.409" W x 0.394" D (25.80mm x 35.80mm x 10.00mm) | |
| Digit/Alpha Size | 0.80" (20.32mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Yellow | |
| Voltage - Forward (Vf) (Typ) | 2.1V | |
| Current - Test | 10mA | |
| Millicandela Rating | 3.9mcd | |
| Wavelength - Peak | 585nm | |
| Power Dissipation (Max) | 105mW | |
| Package / Case | 18-DIP (0.866", 22.00mm) | |
| Standard Package | 14 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LDD-C813RI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDD-C813RI is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LDD-C813RI is new and unused, you can buy LDD-C813RI Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDD-C813RI.
