Manufacturer Part Number: | LDD-C403NI |
---|---|
Manufacturer: | Lumex Opto/Components Inc. |
Product Category: | Display Modules - LED Character and Numeric |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

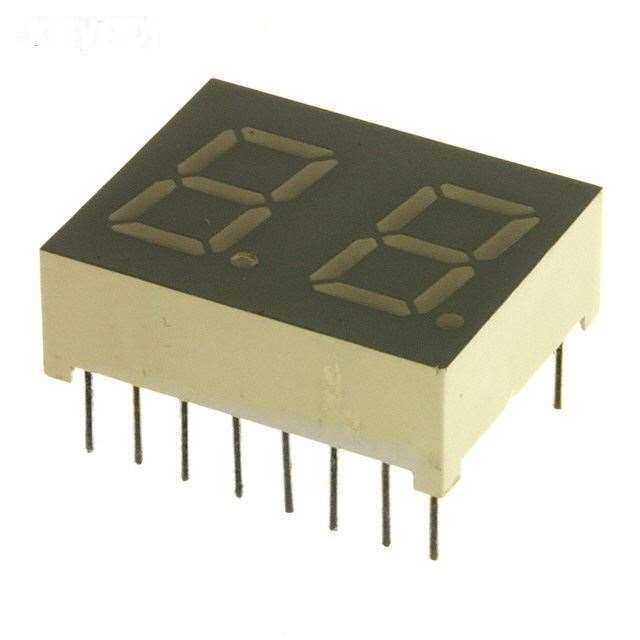

Description: | Character LED Display Module Yellow 7-Segment 2 Character Common Cathode 2.1V 10mA 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) 16-DIP (0.500", 12.70mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LDD-C403NI Datasheet |
Internal Part Number | 898-LDD-C403NI | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LEDs | |
RoHS Information | RoHS Cert of Compliance | |
Online Catalog | 0.4in 2-Digit 7-Segment Display | |
Category | Optoelectronics | |
Family | Display Modules - LED Character and Numeric | |
Manufacturer | Lumex Opto/Components Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Number of Characters | 2 | |
Size / Dimension | 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) | |
Digit/Alpha Size | 0.40" (10.16mm) | |
Display Type | 7-Segment | |
Common Pin | Common Cathode | |
Color | Yellow | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Current - Test | 10mA | |
Millicandela Rating | 3.9mcd | |
Wavelength - Peak | 585nm | |
Power Dissipation (Max) | 105mW | |
Package / Case | 16-DIP (0.500", 12.70mm) | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LDD-C403NI | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LDD-C403NI is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LDD-C403NI is new and unused, you can buy LDD-C403NI Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDD-C403NI.
