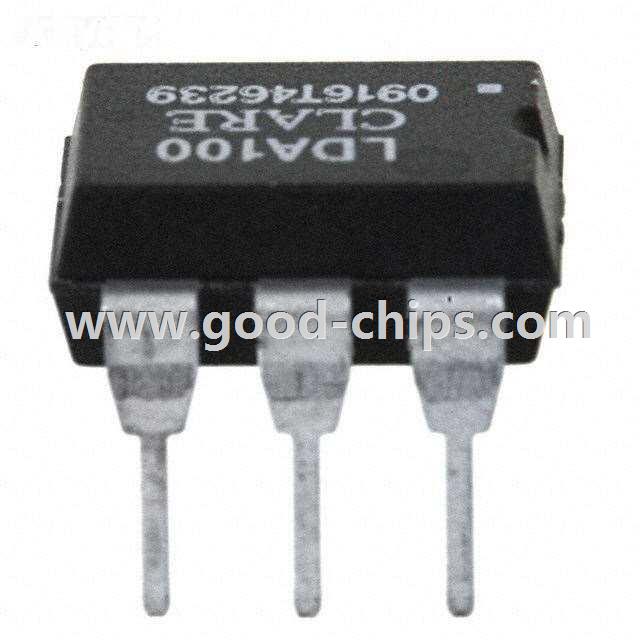

| Manufacturer Part Number: | LDA100 |
|---|---|
| Manufacturer: | IXYS Integrated Circuits Division |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 9104 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor with Base Output 3750Vrms 1 Channel 6-DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDA100 Datasheet |
| Internal Part Number | 898-LDA100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Laser Marking Update 30/Mar/2015 | |
| Online Catalog | LDA100 Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | IXYS Integrated Circuits Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 33% @ 1mA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | 7µs, 20µs | |
| Rise / Fall Time (Typ) | - | |
| Input Type | AC, DC | |
| Output Type | Transistor with Base | |
| Voltage - Output (Max) | 30V | |
| Current - Output / Channel | - | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 1mA | |
| Vce Saturation (Max) | 500mV | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 6-DIP | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LDA100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDA100 is in stock for immediate shipping now. We are the distributor of IXYS Integrated Circuits Division all series components. The condition of LDA100 is new and unused, you can buy LDA100 IXYS Integrated Circuits Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDA100.
