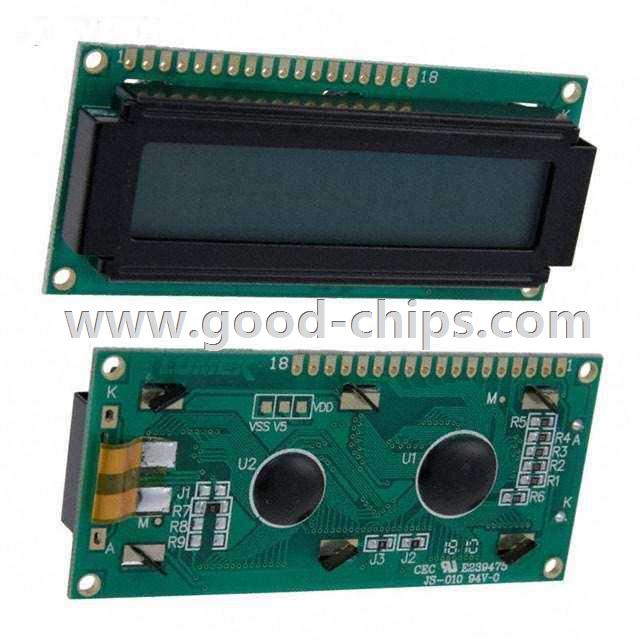

| Manufacturer Part Number: | LCR-U01602DSF/AWH |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9748 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 80.00mm x 36.00mm x 9.90mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCR-U01602DSF/AWH Datasheet |
| Internal Part Number | 898-LCR-U01602DSF/AWH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LCD Technology Benefits of Custom LED and LCD Technology Bi-Stable LCD Technology | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | InfoVue™ Extreme Temperature LCD Displays | |
| Online Catalog | High/Low Temperature LCD Modules | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 32 | |
| Display Format | 16 x 2 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Transflective | |
| Character Size | 4.35mm H x 2.80mm W | |
| Outline L x W x H | 80.00mm x 36.00mm x 9.90mm | |
| Viewing Area | 64.00mm L x 14.00mm W | |
| Backlight | LED - White | |
| Voltage - Supply | 4.7 V ~ 5.3 V | |
| Dot Size | 0.52mm W x 0.52mm H | |
| Interface | Parallel | |
| Operating Temperature | -40°C ~ 85°C | |
| Text Color | - | |
| Background Color | Green | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCR-U01602DSF/AWH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCR-U01602DSF/AWH is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LCR-U01602DSF/AWH is new and unused, you can buy LCR-U01602DSF/AWH Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCR-U01602DSF/AWH.
