| Manufacturer Part Number: | LCQT-TSSOP20 |
|---|---|
| Manufacturer: | Aries Electronics |
| Product Category: | Sockets for ICs, Transistors - Adapters |
| Available Quantity: | 9117 Pieces |
| Unit Price: | Quote by Email |

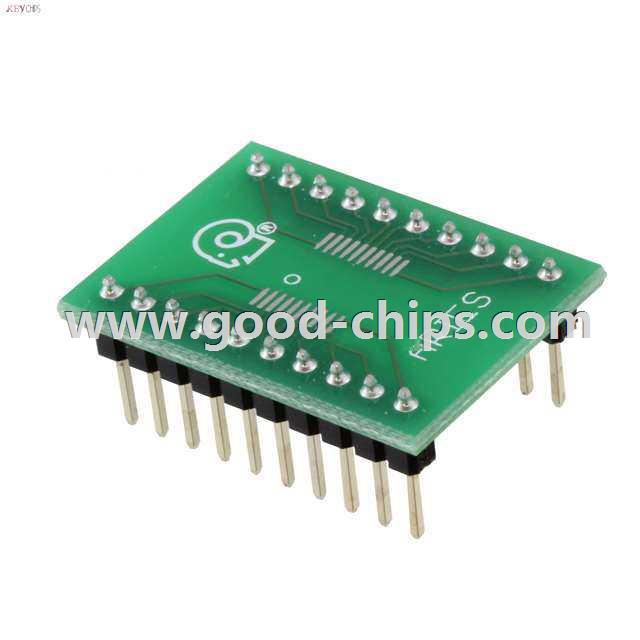

| Description: | IC Socket Adapter TSSOP To DIP, 0.6" (15.24mm) Row Spacing Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCQT-TSSOP20 Datasheet |
| Internal Part Number | 898-LCQT-TSSOP20 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Low-Cost Quick-Turn Adapters | |
| Online Catalog | Correct-A-Chip® LCQT | |
| Category | Connectors, Interconnects | |
| Family | Sockets for ICs, Transistors - Adapters | |
| Manufacturer | Aries Electronics | |
| Series | Correct-A-Chip® | |
| Part Status | Active | |
| Convert From (Adapter End) | TSSOP | |
| Convert To (Adapter End) | DIP, 0.6" (15.24mm) Row Spacing | |
| Number of Pins | 20 | |
| Pitch - Mating | 0.026" (0.65mm) | |
| Contact Finish - Mating | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Pitch - Post | 0.100" (2.54mm) | |
| Contact Finish - Post | Gold | |
| Housing Material | Polyester | |
| Board Material | FR4 Epoxy Glass | |
| Termination Post Length | 0.236" (6.00mm) | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Current Rating | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Contact Material - Mating | - | |
| Contact Material - Post | Brass | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish Thickness - Post | Flash | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCQT-TSSOP20 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCQT-TSSOP20 is in stock for immediate shipping now. We are the distributor of Aries Electronics all series components. The condition of LCQT-TSSOP20 is new and unused, you can buy LCQT-TSSOP20 Aries Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCQT-TSSOP20.
